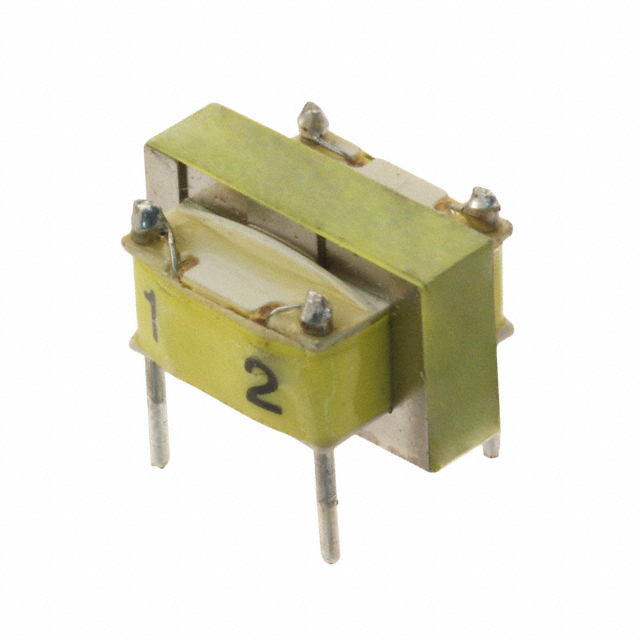

T1104 Tamura
Favorite
Compare
Manufacturer:
Tamura
MFR Product Number:
T1104
Product Number:
T1104
MFR Standard Lead Time:
26 Weeks
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600 TH
Datasheet:
Descnt:
600 Impedance Primary Ohms 600 Impedance Secondary Ohms Audio Transformer 300Hz ~ 3.5kHz Through Hole
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Tamura
Series
-
Packaging
Tray
Part Status
Active
Turns Ratio - Primary:Secondary
-
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
46Ohm
DC Resistance (DCR) - Secondary
63Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
300Hz ~ 3.5kHz
Frequency Response
±0.5dB
Voltage - Isolation
1500VRMS 1 Minute
Insertion Loss
1dB Typ 1kHz
Return Loss
26dB Min
Power Level
-45dB ~ 7dB
Operating Temperature
-
Approval Agency
CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type
Through Hole
Size / Dimension
0.780" L x 0.654" W (19.80mm x 16.60mm)
Height - Seated (Max)
0.469" (11.90mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8504.31.4035
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
600
