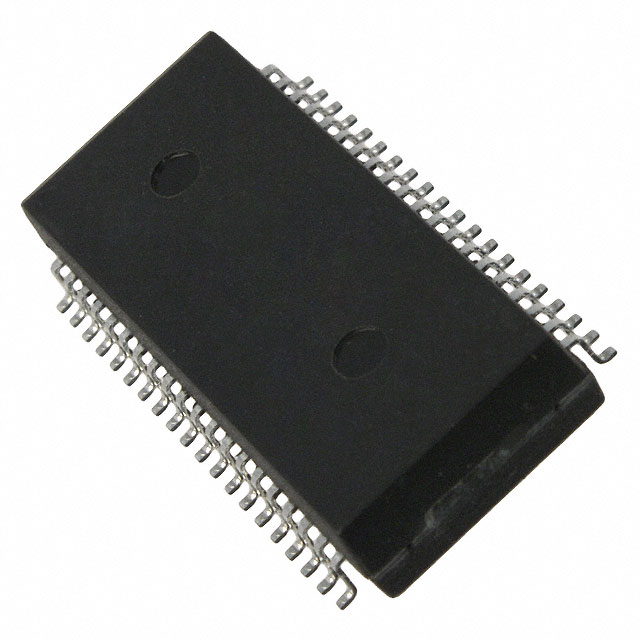

T1124NL Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
T1124NL
Product Number:
T1124NL
MFR Standard Lead Time:
12 Weeks
Package/Case:
Detailed Description:
XFRMR T1/E1/CEPT/ISDN-PRI 1:2CT
Datasheet:
Descnt:
1.2mH, 1.2mH T1/E1 (Quad) Pulse Transformer 1:2CT Transmitter, 1CT:2 Receiver Surface Mount
In Stock
287
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tube
Part Status
Active
Transformer Type
T1/E1 (Quad)
Inductance
1.2mH, 1.2mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:2CT Transmitter, 1CT:2 Receiver
Mounting Type
Surface Mount
Size / Dimension
1.125" L x 0.485" W (28.58mm x 12.32mm)
Height - Seated (Max)
0.230" (5.84mm)
Operating Temperature
0°C ~ 70°C
Weight
-
-
Documents & Media
Product Drawings
T1/E1/CEPT/ISDN-PRI Dual
Schematic F
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
4 (72 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
15
