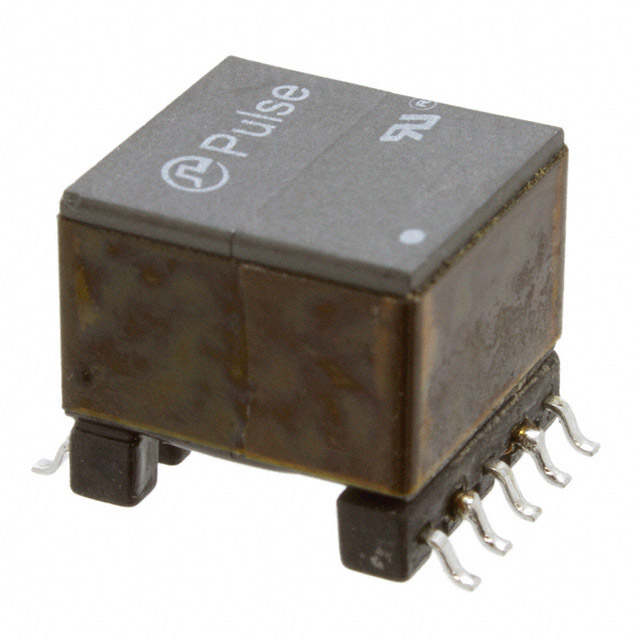

T6003NLT Pulse Electronics
Favorite
Compare
Manufacturer:
Pulse Electronics
MFR Product Number:
T6003NLT
Product Number:
T6003NLT
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 / 600 SMD
Datasheet:
Descnt:
600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1 Audio Transformer Surface Mount
In Stock
215
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Pulse Electronics
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
55Ohm
DC Resistance (DCR) - Secondary
70Ohm
Transformer Type
General Purpose
Frequency Range
-
Frequency Response
-
Voltage - Isolation
1500Vrms
Insertion Loss
1dB 200Hz, 1dB 1kHz, 1dB 20kHz, 1.9dB 100kHz
Return Loss
20dB 200Hz, 1dB 1kHz, 25dB 10kHz
Power Level
-
Operating Temperature
-
Approval Agency
-
Mounting Type
Surface Mount
Size / Dimension
0.530" L x 0.516" W (13.46mm x 13.11mm)
Height - Seated (Max)
0.485" (12.32mm)
Termination Style
Gull Wing
Weight
0.015 lb (6.8 g)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
150
