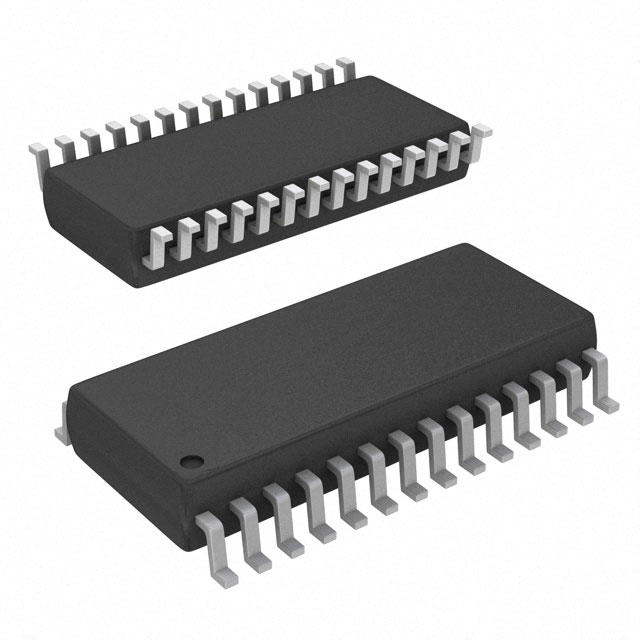

T6816-TISY Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
T6816-TISY
Product Number:
T6816-TISY
MFR Standard Lead Time:
Package/Case:
28-SOIC (0.295\, 7.50mm Width)
Detailed Description:
IC HALF BRIDGE DRIVER 600MA 28SO
Datasheet:
Descnt:
Half Bridge (3) Driver Bulbs, DC Motors, Resistors DMOS 28-SO
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Half Bridge (3)
Applications
Bulbs, DC Motors, Resistors
Interface
SPI
Load Type
Inductive, Capacitive, Resistive
Technology
DMOS
Rds On (Typ)
-
Current - Output / Channel
600mA
Current - Peak Output
950mA
Voltage - Supply
4.75V ~ 5.25V
Voltage - Load
7V ~ 40V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
-
Fault Protection
-
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295", 7.50mm Width)
Supplier Device Package
28-SO
Base Product Number
T6816
-
Documents & Media
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
1,550
-
