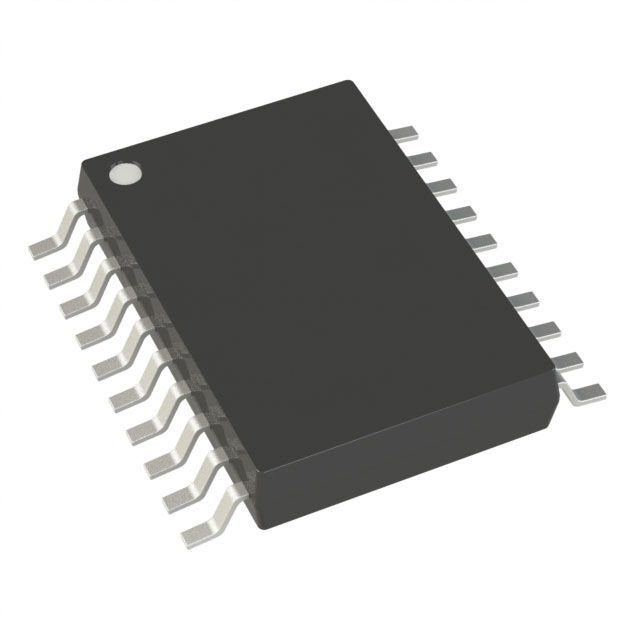

T6817-TKQY Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
T6817-TKQY
Product Number:
T6817-TKQY
MFR Standard Lead Time:
Package/Case:
20-TSSOP (0.173\, 4.40mm Width)
Detailed Description:
IC HALF BRIDGE DRVR 600MA 20SSO
Datasheet:
Descnt:
Half Bridge (3) Driver Bulbs, DC Motors, Resistors BCDMOS 20-SSO
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Half Bridge (3)
Applications
Bulbs, DC Motors, Resistors
Interface
SPI
Load Type
Inductive, Capacitive, Resistive
Technology
BCDMOS
Rds On (Typ)
1.5Ohm LS (Max), 2Ohm HS (Max)
Current - Output / Channel
600mA
Current - Peak Output
-
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
5.5V ~ 40V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
Status Flag
Fault Protection
ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
20-SSO
Base Product Number
T6817
-
Documents & Media
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
