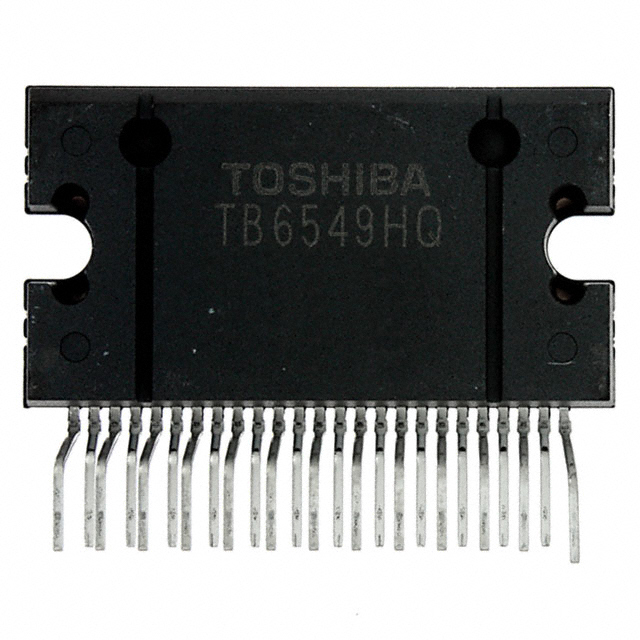

TB6549HQ(O) Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TB6549HQ(O)
Product Number:
TB6549HQ-O
MFR Standard Lead Time:
Package/Case:
25-SSIP Formed Leads
Detailed Description:
IC MOTOR DRIVER 10V-27V 25HZIP
Datasheet:
Descnt:
Motor Driver Bi-CMOS PWM, Serial 25-HZIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tube
Part Status
Obsolete
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (2)
Interface
PWM, Serial
Technology
Bi-CMOS
Step Resolution
-
Applications
General Purpose
Current - Output
4.5A
Voltage - Supply
10V ~ 27V
Voltage - Load
10V ~ 27V
Operating Temperature
-20°C ~ 85°C (TA)
Mounting Type
Through Hole
Package / Case
25-SSIP Formed Leads
Supplier Device Package
25-HZIP
Base Product Number
TB6549
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
500
