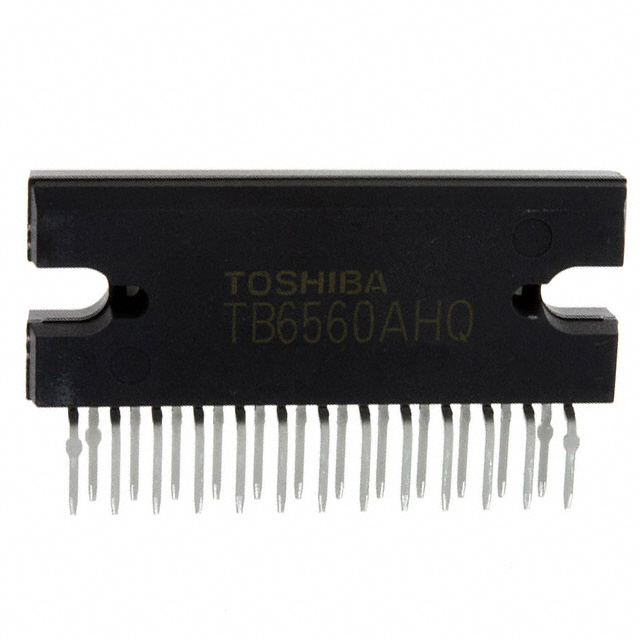

TB6560AHQ,8 Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TB6560AHQ,8
Product Number:
TB6560AHQ-8
MFR Standard Lead Time:
28 Weeks
Package/Case:
25-SSIP Formed Leads
Detailed Description:
IC MTR DRV BIPLR 4.5-5.5V 25HZIP
Datasheet:
Descnt:
Bipolar Motor Driver Power MOSFET Parallel 25-HZIP
In Stock
1356
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tube
Part Status
Active
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
-
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel
Technology
Power MOSFET
Step Resolution
1, 1/2, 1/4, 1/8, 1/16
Applications
General Purpose
Current - Output
3A
Voltage - Supply
4.5V ~ 5.5V
Voltage - Load
4.5V ~ 34V
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Through Hole
Package / Case
25-SSIP Formed Leads
Supplier Device Package
25-HZIP
Base Product Number
TB6560
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
14
