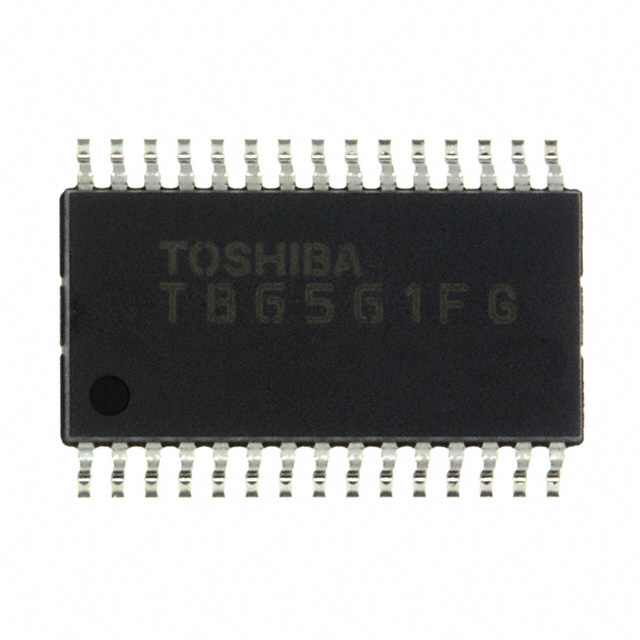

TB6561FG,8,EL Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TB6561FG,8,EL
Product Number:
TB6561FG-8-EL
MFR Standard Lead Time:
28 Weeks
Package/Case:
30-BSOP (0.295\, 7.50mm Width)
Detailed Description:
IC MOTOR DRIVER 10V-36V 30SSOP
Datasheet:
Descnt:
Motor Driver Bi-CMOS PWM 30-SSOP
In Stock
6995
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
PWM
Technology
Bi-CMOS
Step Resolution
-
Applications
General Purpose
Current - Output
1.5A
Voltage - Supply
10V ~ 36V
Voltage - Load
10V ~ 36V
Operating Temperature
-20°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
30-BSOP (0.295", 7.50mm Width)
Supplier Device Package
30-SSOP
Base Product Number
TB6561
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
