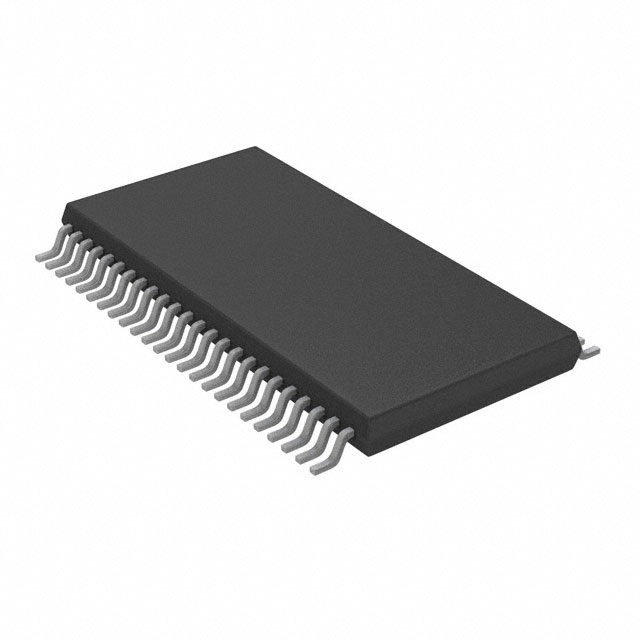

TB67S102AFNG,EL Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TB67S102AFNG,EL
Product Number:
TB67S102AFNG-EL
MFR Standard Lead Time:
32 Weeks
Package/Case:
48-TFSOP (0.240\, 6.10mm Width) Exposed Pad
Detailed Description:
IC MOTOR DRIVER BIPOLAR 48HTSSOP
Datasheet:
Descnt:
Bipolar Motor Driver Power MOSFET Parallel 48-HTSSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
-
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel
Technology
Power MOSFET
Step Resolution
1, 1/2, 1/4
Applications
General Purpose
Current - Output
3A
Voltage - Supply
4.75V ~ 5.25V
Voltage - Load
10V ~ 47V
Operating Temperature
-20°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package
48-HTSSOP
Base Product Number
TB67S102
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
1,000
