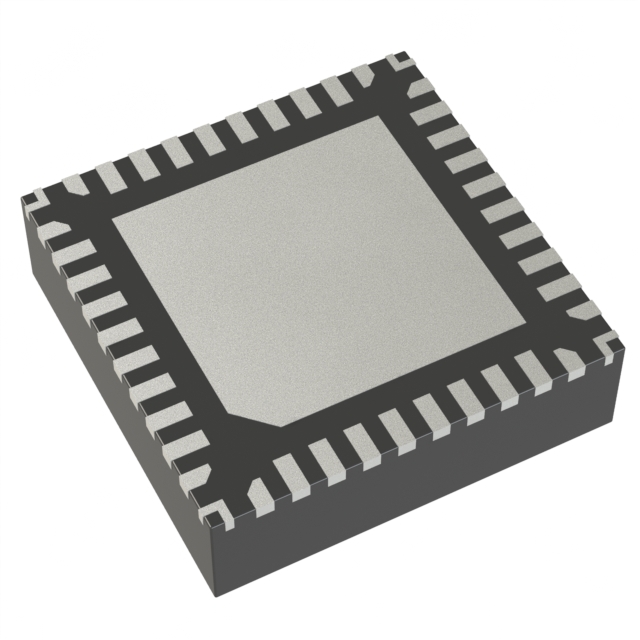

TB9053FTG(EL) Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TB9053FTG(EL)
Product Number:
TB9053FTG-EL
MFR Standard Lead Time:
26 Weeks
Package/Case:
40-LFQFN Exposed Pad
Detailed Description:
H-BRIDGE MTR DRV 2CH 5A/1CH 10A
Datasheet:
Descnt:
Bipolar Motor Driver DMOS PWM, SPI 40-QFN (6x6)
In Stock
2970
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
PWM, SPI
Technology
DMOS
Step Resolution
-
Applications
-
Current - Output
6A
Voltage - Supply
4.5V ~ 28V
Voltage - Load
4.5V ~ 28V
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Mounting Type
Surface Mount
Package / Case
40-LFQFN Exposed Pad
Supplier Device Package
40-QFN (6x6)
Base Product Number
TB9053
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
3,000
