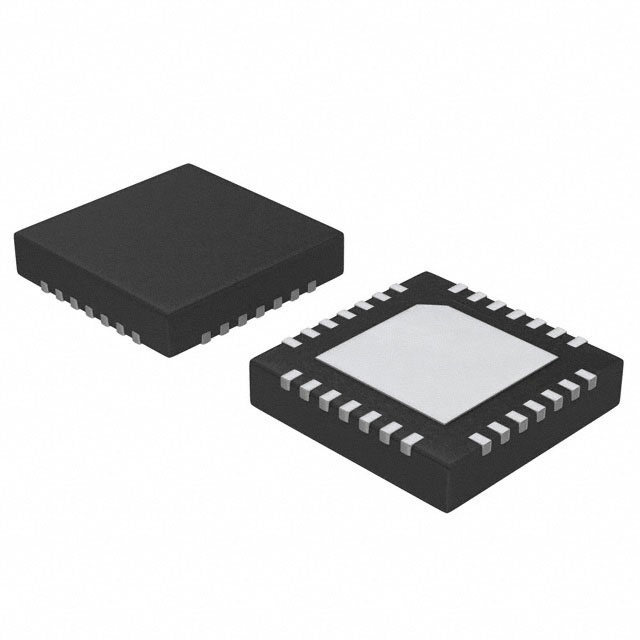

TB9120AFTG(EL) Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TB9120AFTG(EL)
Product Number:
TB9120AFTG-EL
MFR Standard Lead Time:
16 Weeks
Package/Case:
28-VQFN Exposed Pad
Detailed Description:
AEC-Q100 BIPOLAR STEPPER MOTOR D
Datasheet:
Descnt:
Bipolar Motor Driver NMOS, PMOS Parallel, PWM 28-VQFN (6x6)
In Stock
1899
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
Parallel, PWM
Technology
NMOS, PMOS
Step Resolution
1, 1/2, 1/8, 1/16, 1/32
Applications
-
Current - Output
2.5A
Voltage - Supply
4.5V ~ 7V, 7V ~ 18V
Voltage - Load
-
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount, Wettable Flank
Package / Case
28-VQFN Exposed Pad
Supplier Device Package
28-VQFN (6x6)
Base Product Number
TB9120
Documents & Media
Datasheets
TB9120AFTG
TB9120AFTG
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
