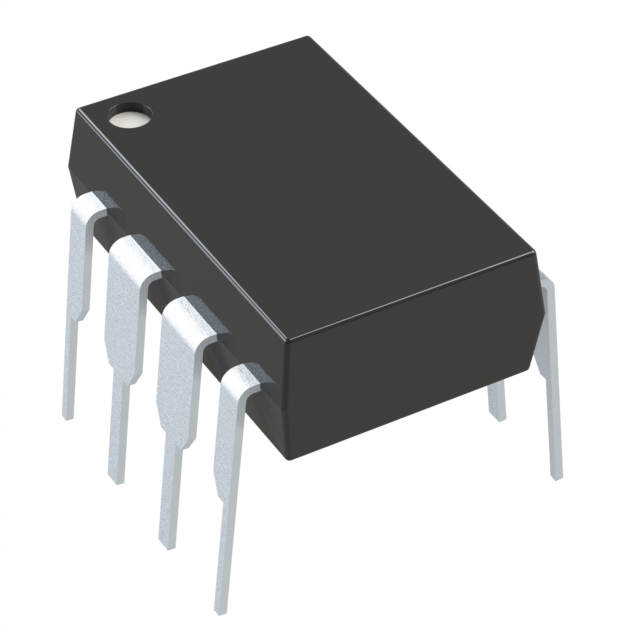

TC4403EPA Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
TC4403EPA
Product Number:
TC4403EPA
MFR Standard Lead Time:
4 Weeks
Package/Case:
8-DIP (0.300\, 7.62mm)
Detailed Description:
IC PWR DRIVER N-CHANNEL 1:1 8DIP
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 8-PDIP
In Stock
171
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
-
Packaging
Tube
Part Status
Active
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
4.5V ~ 18V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
-
Rds On (Typ)
2.8mOhm
Input Type
-
Features
-
Fault Protection
-
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Through Hole
Supplier Device Package
8-PDIP
Package / Case
8-DIP (0.300", 7.62mm)
Base Product Number
TC4403
Documents & Media
PCN Design/Specification
PCN Packaging
Label and Packing Changes 23/Sep/2015
Packing Changes 10/Oct/2016
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
TC4403EPA-NDR
Standard Package
60
