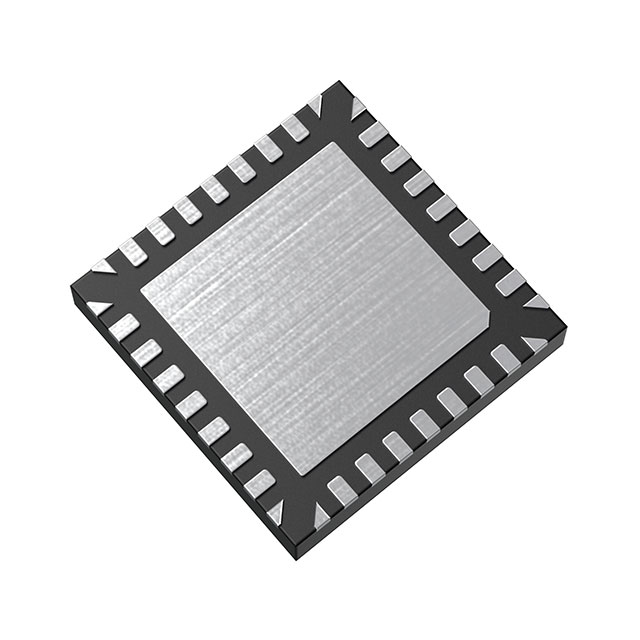

TC78B009FTG,EL Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TC78B009FTG,EL
Product Number:
TC78B009FTG-EL
MFR Standard Lead Time:
16 Weeks
Package/Case:
36-WFQFN Exposed Pad
Detailed Description:
30V, 3-PHASE BRUSHLESS DC (BLDC)
Datasheet:
Descnt:
Multiphase Motor Driver NMOS I2C, PWM 36-WQFN (5x5)
In Stock
13692
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Multiphase
Motor Type - AC, DC
Brushless DC (BLDC)
Function
Controller - Commutation, Direction Management
Output Configuration
Pre-Driver - High Side/Low Side
Interface
I2C, PWM
Technology
NMOS
Step Resolution
-
Applications
General Purpose
Current - Output
240mA
Voltage - Supply
5.5V ~ 27V
Voltage - Load
-
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Package / Case
36-WFQFN Exposed Pad
Supplier Device Package
36-WQFN (5x5)
Base Product Number
TC78B009
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
