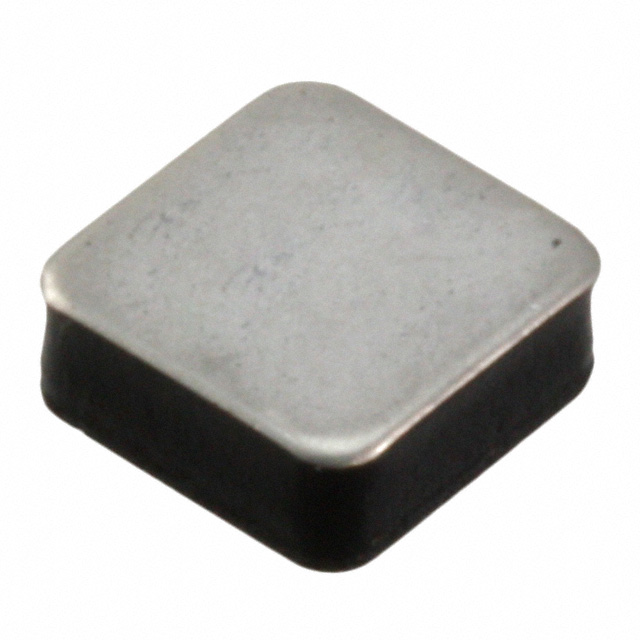

TCF250-100T-B-0.5 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
TCF250-100T-B-0.5
Product Number:
TCF250-100T-B-0-5
MFR Standard Lead Time:
15 Weeks
Package/Case:
Nonstandard SMD
Detailed Description:
PTC RESET FUSE 60V 90MA SMD
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 60V (250V Int) 90 mA Ih Surface Mount Nonstandard SMD
In Stock
1961
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, TCF250
Packaging
Bag
Part Status
Active
Type
Polymeric
Voltage - Max
60V (250V Int)
Current - Hold (Ih) (Max)
90 mA
Current - Trip (It)
150 mA
Current - Max
3 A
Time to Trip
200 ms
Resistance - Initial (Ri) (Min)
14 Ohms
Resistance - Post Trip (R1) (Max)
24 Ohms
Operating Temperature
-40°C ~ 85°C
Ratings
-
Mounting Type
Surface Mount
Package / Case
Nonstandard SMD
Size / Dimension
0.187" L x 0.187" W (4.75mm x 4.75mm)
Height - Seated (Max)
-
Thickness (Max)
0.091" (2.30mm)
Lead Spacing
-
Approval Agency
-
-
Documents & Media
Datasheets
Video File
Building Automation – Protect/Sense/Control
Basics of NTC and PTC Thermistors - Another Teaching Moment
HTML Datasheet
TCF250-100T-B-0.5 Spec
Telecom/Networking Devices Catalog
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
-
Additional Resources
Other Names
Standard Package
2,500
