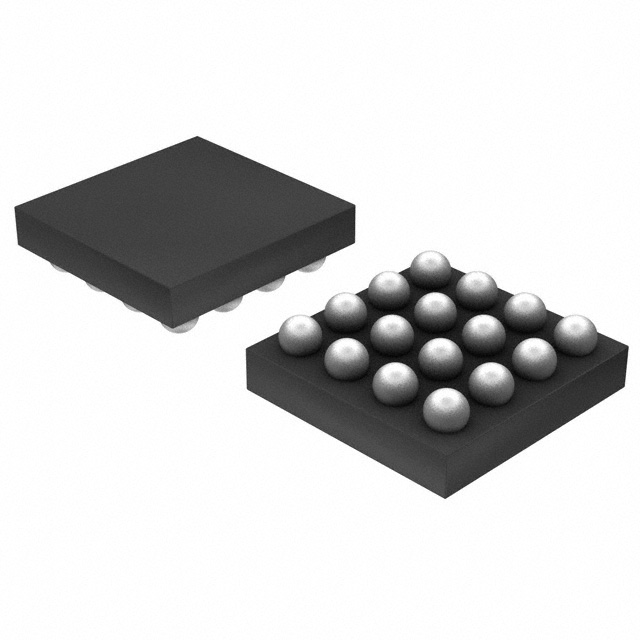

TCK323G,LF Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TCK323G,LF
Product Number:
TCK323G-LF
MFR Standard Lead Time:
42 Weeks
Package/Case:
16-UFBGA, CSPBGA
Detailed Description:
IC PWR SWITCH N-CHAN 2:1 16WCSP
Datasheet:
Descnt:
Power Switch/Driver 2:1 N-Channel 2A 16-WCSPC (1.9x1.9)
In Stock
18944
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
2:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
2.3V ~ 36V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
2A
Rds On (Typ)
98mOhm
Input Type
-
Features
Slew Rate Controlled, Status Flag
Fault Protection
Over Temperature, Over Voltage, Reverse Current, UVLO
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
16-WCSPC (1.9x1.9)
Package / Case
16-UFBGA, CSPBGA
Base Product Number
TCK323
Documents & Media
Datasheets
Featured Product
USB Type-C Data MUX and Power Delivery Switches
Discrete Solid State Drive (SSD) Solution
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
