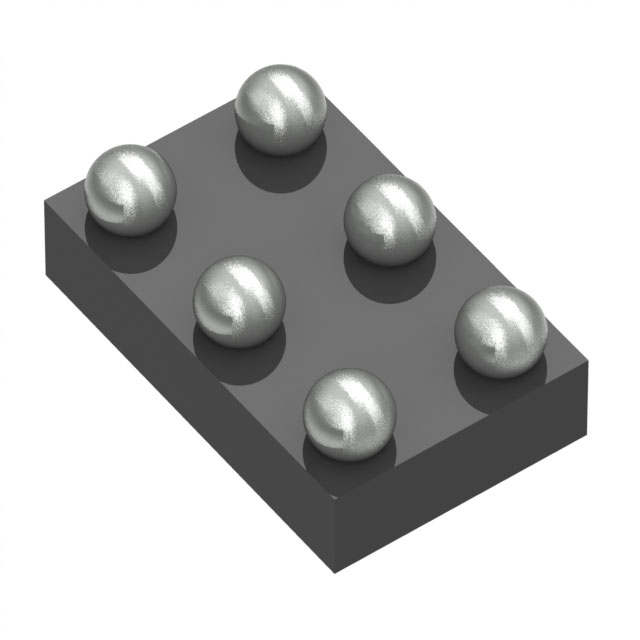

TCK423G,L3F Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TCK423G,L3F
Product Number:
TCK423G-L3F
MFR Standard Lead Time:
52 Weeks
Package/Case:
6-XFBGA, WLCSP
Detailed Description:
LOAD SWITCH (GATE DRIVER) IC WCS
Datasheet:
Descnt:
High-Side Gate Driver IC Non-Inverting 6-WCSPG (0.8x1.2)
In Stock
9941
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
High-Side
Channel Type
Single
Number of Drivers
1
Gate Type
N-Channel MOSFET
Voltage - Supply
2.7V ~ 28V
Logic Voltage - VIL, VIH
0.4V, 1.2V
Current - Peak Output (Source, Sink)
-
Input Type
Non-Inverting
Rise / Fall Time (Typ)
-
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
6-XFBGA, WLCSP
Supplier Device Package
6-WCSPG (0.8x1.2)
Base Product Number
TCK423
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
5,000
