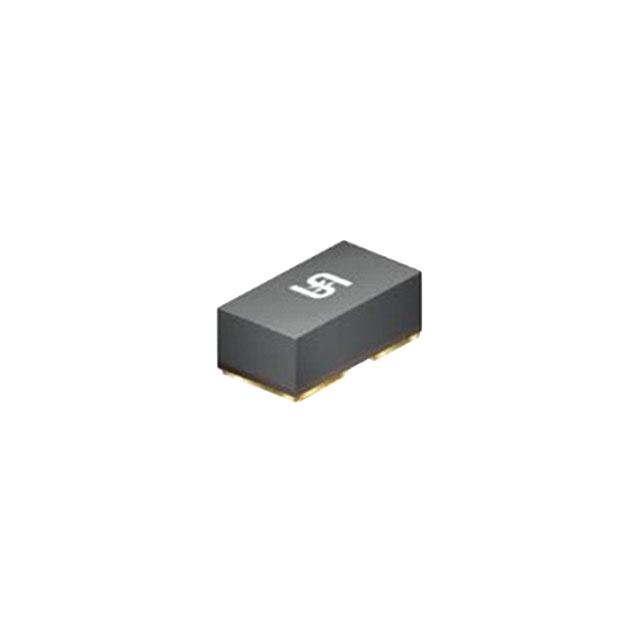

TESDE24V Taiwan Semiconductor Corporation
Favorite
Compare
Manufacturer:
Taiwan Semiconductor Corporation
MFR Product Number:
TESDE24V
Product Number:
TESDE24V
MFR Standard Lead Time:
15 Weeks
Package/Case:
0503 (1308 Metric)
Detailed Description:
0503, 24V, 47W, 10PF, ESD PROTEC
Datasheet:
Descnt:
47V Clamp 1A Ipp Tvs Diode Surface Mount 0503
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Taiwan Semiconductor Corporation
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
24V
Voltage - Breakdown (Min)
25V
Voltage - Clamping (Max) Ipp
47V
Current - Peak Pulse (10/1000µs)
1A
Power - Peak Pulse
47W
Power Line Protection
No
Applications
USB
Capacitance Frequency
10pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
0503 (1308 Metric)
Supplier Device Package
0503
Base Product Number
TESDE24
-
Documents & Media
Environmental Information
Taiwan Semi RoHS
Taiwan Semi REACH
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
Additional Resources
Other Names
1801-TESDE24VTR
Standard Package
4,000
