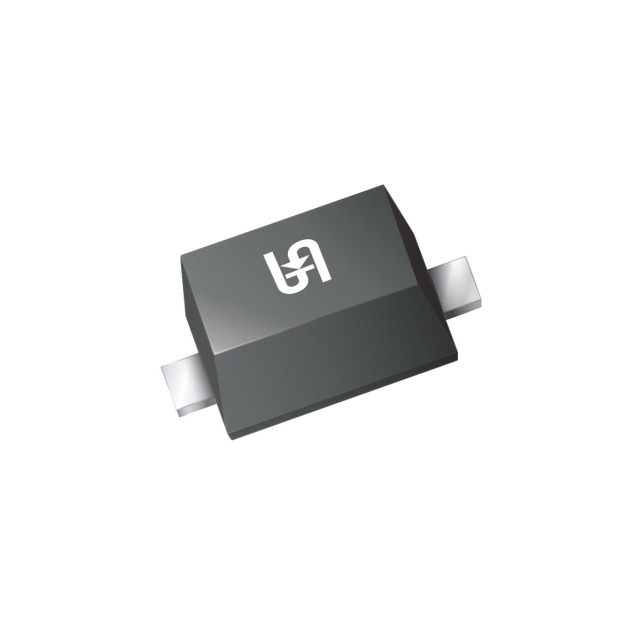

TESDL5V0B20P1M5 RKG Taiwan Semiconductor Corporation
Favorite
Compare
Manufacturer:
Taiwan Semiconductor Corporation
MFR Product Number:
TESDL5V0B20P1M5 RKG
Product Number:
TESDL5V0B20P1M5-RKG
MFR Standard Lead Time:
21 Weeks
Package/Case:
SC-79, SOD-523
Detailed Description:
SOD-523F, 5V, 84W, 12.7PF, ESD P
Datasheet:
Descnt:
14V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523F
In Stock
1590
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Taiwan Semiconductor Corporation
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
14V
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
Power - Peak Pulse
84W
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
12.7pF 1MHz
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
SC-79, SOD-523
Supplier Device Package
SOD-523F
Base Product Number
TESDL5V
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
3,000
