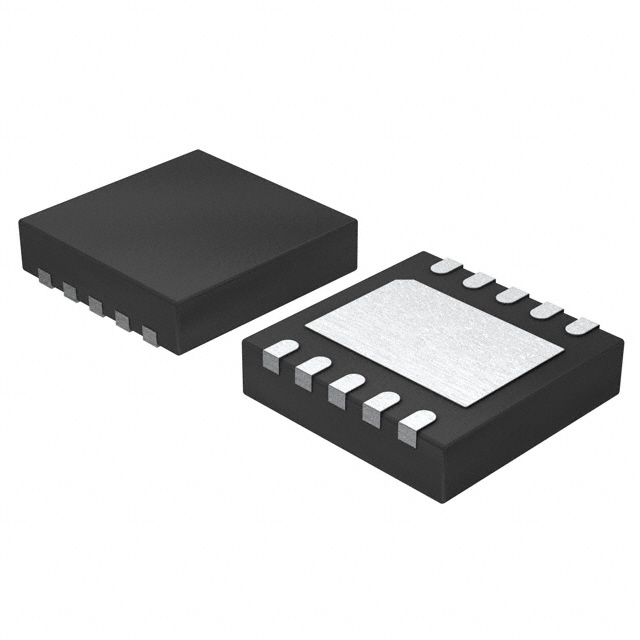

TF0579U TF Semiconductor Solutions
Favorite
Compare
Manufacturer:
TF Semiconductor Solutions
MFR Product Number:
TF0579U
Product Number:
TF0579U
MFR Standard Lead Time:
5 Weeks
Package/Case:
10-WFDFN Exposed Pad
Detailed Description:
100V, HIGH SIDE/LOW SIDE GATE DR
Datasheet:
Descnt:
Half-Bridge Gate Driver IC TTL, Non-Inverting 10-DFN (3x3)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TF Semiconductor Solutions
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT, N-Channel MOSFET
Voltage - Supply
6.5V ~ 18V
Logic Voltage - VIL, VIH
0.8V, 6.5V
Current - Peak Output (Source, Sink)
1.5A, 2.5A
Input Type
TTL, Non-Inverting
Rise / Fall Time (Typ)
27ns, 20ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
10-WFDFN Exposed Pad
Supplier Device Package
10-DFN (3x3)
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH info available upon request
ECCN
EAR99
Additional Resources
Other Names
Standard Package
3,000
