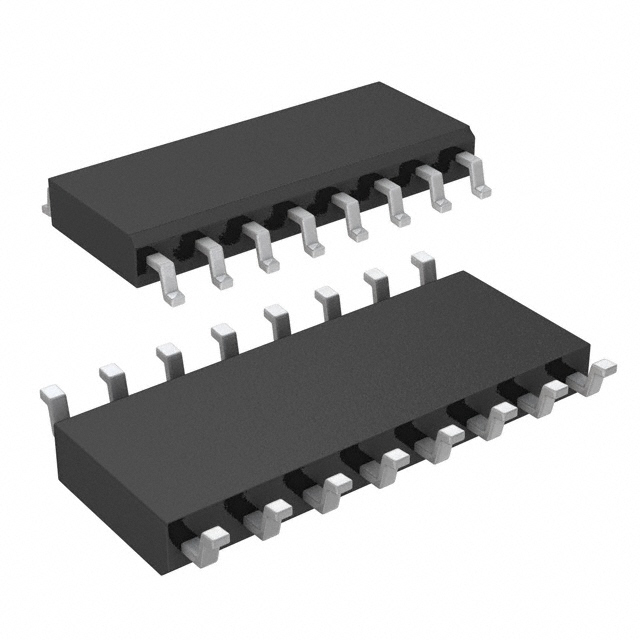

TF2113M TF Semiconductor Solutions
Favorite
Compare
Manufacturer:
TF Semiconductor Solutions
MFR Product Number:
TF2113M
Product Number:
TF2113M
MFR Standard Lead Time:
5 Weeks
Package/Case:
16-SOIC (0.295\, 7.50mm Width)
Detailed Description:
600V HI-SIDE/LO-SIDE GATE DRIVER
Datasheet:
Descnt:
High-Side and Low-Side Gate Driver IC Non-Inverting 16-SOIC
In Stock
3000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TF Semiconductor Solutions
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
High-Side and Low-Side
Channel Type
Independent
Number of Drivers
2
Gate Type
IGBT, N-Channel MOSFET
Voltage - Supply
10V ~ 20V
Logic Voltage - VIL, VIH
6V, 9.5V
Current - Peak Output (Source, Sink)
2.5A, 2.5A
Input Type
Non-Inverting
Rise / Fall Time (Typ)
15ns, 13ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width)
Supplier Device Package
16-SOIC
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH info available upon request
ECCN
EAR99
Additional Resources
Other Names
Standard Package
1,500
