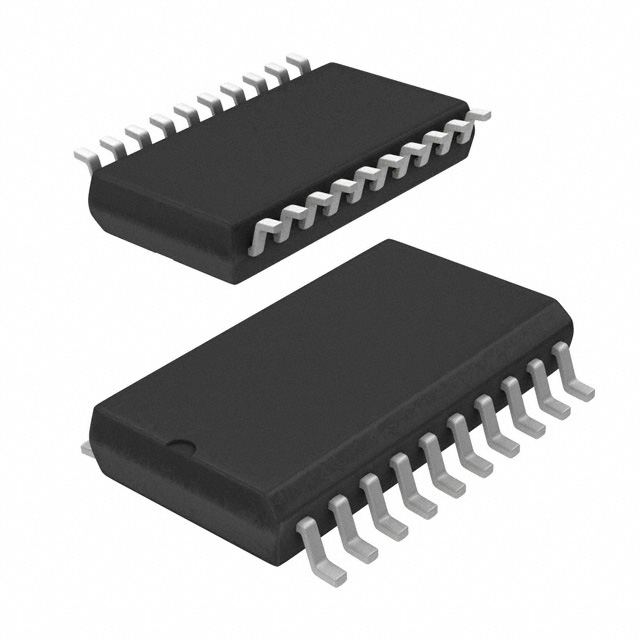

TF2388M TF Semiconductor Solutions
Favorite
Compare
Manufacturer:
TF Semiconductor Solutions
MFR Product Number:
TF2388M
Product Number:
TF2388M
MFR Standard Lead Time:
5 Weeks
Package/Case:
20-SOIC (0.295\, 7.50mm Width)
Detailed Description:
600V, 3-PHASE GATE DRIVER
Datasheet:
Descnt:
Half-Bridge Gate Driver IC Non-Inverting 20-SOIC
In Stock
2958
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
TF Semiconductor Solutions
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
3-Phase
Number of Drivers
6
Gate Type
IGBT, N-Channel MOSFET
Voltage - Supply
10V ~ 20V
Logic Voltage - VIL, VIH
0.8V, 2.4V
Current - Peak Output (Source, Sink)
420mA, 750mA
Input Type
Non-Inverting
Rise / Fall Time (Typ)
45ns, 25ns
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
20-SOIC (0.295", 7.50mm Width)
Supplier Device Package
20-SOIC
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8542.39.0075
-
Additional Resources
Other Names
Standard Package
1,500
