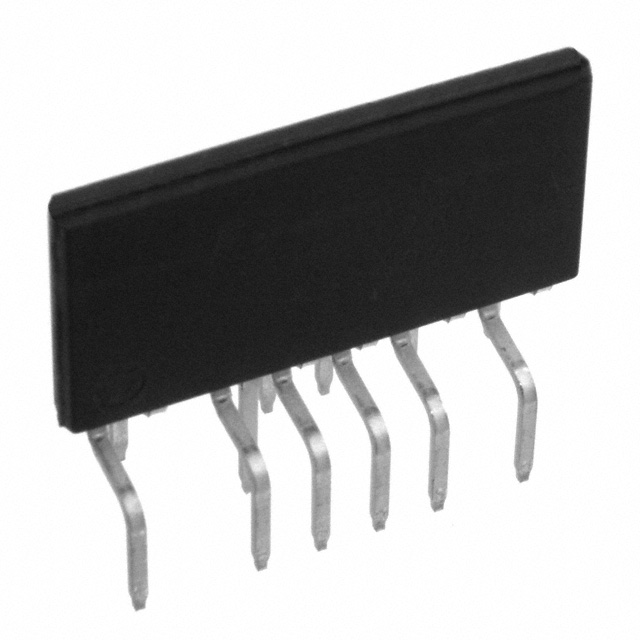

TFS764HG Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
TFS764HG
Product Number:
TFS764HG
MFR Standard Lead Time:
Package/Case:
16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Detailed Description:
IC OFFLIN CONV MULT TOP ESIP-16B
Datasheet:
Descnt:
Converter Offline Flyback, Forward Topology 66kHz eSIP-16B
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
HiperTFS®
Packaging
Tube
Part Status
Obsolete
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
530V, 725V
Topology
Flyback, Forward
Voltage - Start Up
12.1 V
Voltage - Supply (Vcc/Vdd)
11.1V ~ 13.4V
Duty Cycle
70%
Frequency - Switching
66kHz
Power (Watts)
414 W
Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features
EN
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package
eSIP-16B
Mounting Type
Through Hole
Base Product Number
TFS764
Documents & Media
Datasheets
PCN Obsolescence/ EOL
Mult Devices EOL REV 30/Jun/2019
Mult Devices EOL 10/Jun/2019
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
596-1395
Standard Package
30
