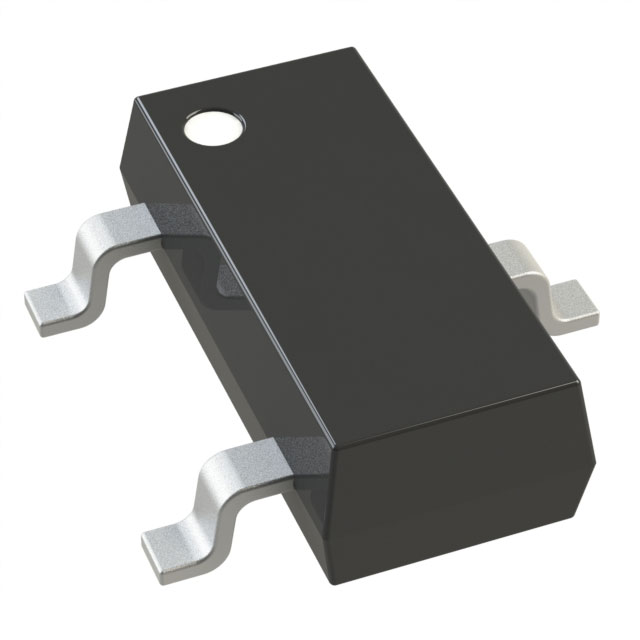

TL431AIDBZR,215 Nexperia USA Inc.
Favorite
Compare
Manufacturer:
Nexperia USA Inc.
MFR Product Number:
TL431AIDBZR,215
MFR Standard Lead Time:
8 Weeks
Package/Case:
TO-236-3, SC-59, SOT-23-3
Detailed Description:
IC VREF SHUNT ADJ 1% TO236AB
Datasheet:
Descnt:
Shunt Voltage Reference IC Adjustable 2.495V 36 VV ±1% 100 mA TO-236AB
In Stock
48812
Contact Name
Business Email
Company Name
Country
Select
Quantity
Quick RFQ
Product Attributes
Manufacturer
Nexperia USA Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Reference Type
Shunt
Output Type
Adjustable
Voltage - Output (Min/Fixed)
2.495V
Voltage - Output (Max)
36 V
Current - Output
100 mA
Tolerance
±1%
Temperature Coefficient
-
Noise - 0.1Hz to 10Hz
-
Noise - 10Hz to 10kHz
-
Voltage - Input
-
Current - Supply
-
Current - Cathode
600 µA
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
TO-236-3, SC-59, SOT-23-3
Supplier Device Package
TO-236AB
Base Product Number
TL431
-
Documents & Media
Datasheets
Featured Product
TL431 Adjustable Shunt Regulator
TL431 and TLVH431 Shunt Regulators
PCN Design/Specification
Resin Hardener 02/Jul/2013
Datasheet Update 01/Aug/2015
PCN Packaging
SOT23 Tape Material 08/Dec/2023
All Dev Label Chgs 2/Aug/2020
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
