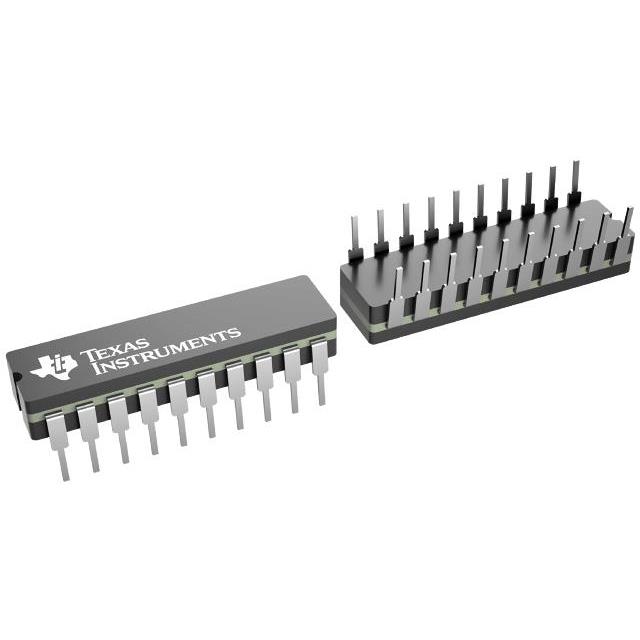

TLC2543MJB Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TLC2543MJB
Product Number:
TLC2543MJB
MFR Standard Lead Time:
Package/Case:
20-CDIP (0.300\, 7.62mm)
Detailed Description:
12-BIT 66KSPS ANALOG-TO-DIGITAL
Datasheet:
Descnt:
12 Bit Analog to Digital Converter 11 Input 1 SAR 20-CDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tube
Part Status
Active
Number of Bits
12
Sampling Rate (Per Second)
66k
Number of Inputs
11
Input Type
Single Ended
Data Interface
Serial
Configuration
MUX-S/H-ADC
Ratio - S/H:ADC
1:1
Number of A/D Converters
1
Architecture
SAR
Reference Type
External
Voltage - Supply, Analog
4.5V ~ 5.5V
Voltage - Supply, Digital
4.5V ~ 5.5V
Features
-
Operating Temperature
-55°C ~ 125°C
Package / Case
20-CDIP (0.300", 7.62mm)
Supplier Device Package
20-CDIP
Mounting Type
Through Hole
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
Additional Resources
Other Names
296-TLC2543MJB
Standard Package
1
