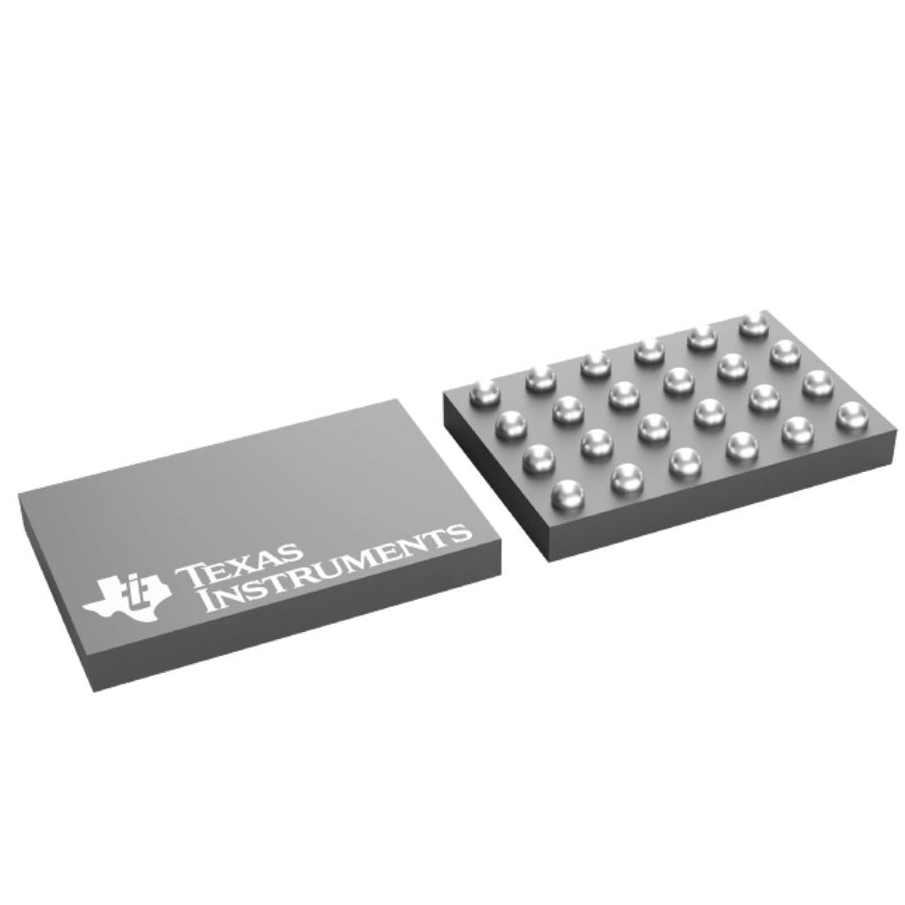

TLC69604YBHR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TLC69604YBHR
Product Number:
TLC69604YBHR
MFR Standard Lead Time:
18 Weeks
Package/Case:
24-BGA, DSBGA
Detailed Description:
64 MINI-LED MATRIX LOCAL DIMMING
Datasheet:
Descnt:
LED Driver IC 16 Output Linear Constant Current PWM Dimming 30mA 24-DSBGA (1.58x2.43)
In Stock
3000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
TLC696x4
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Linear
Topology
Constant Current
Internal Switch(s)
No
Number of Outputs
16
Voltage - Supply (Min)
3V
Voltage - Supply (Max)
5.5V
Voltage - Output
20V
Current - Output / Channel
30mA
Frequency
-
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
24-BGA, DSBGA
Supplier Device Package
24-DSBGA (1.58x2.43)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
-
Additional Resources
Other Names
Standard Package
3,000
