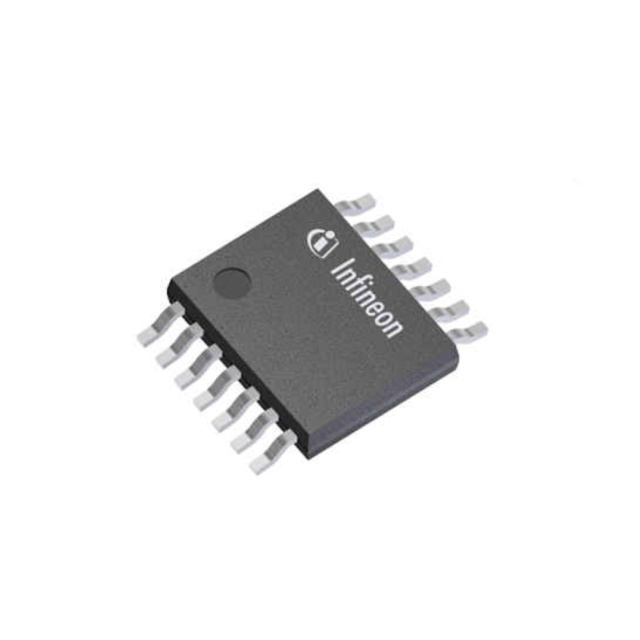

TLD22522EPXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
TLD22522EPXUMA1
Product Number:
TLD22522EPXUMA1
MFR Standard Lead Time:
26 Weeks
Package/Case:
14-TSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
IC LED DRVR CTRLR PWM 14TSDSO
Datasheet:
Descnt:
LED Driver IC 2 Output DC DC Controller Switched Capacitor (Charge Pump) PWM Dimming 120mA PG-TSDSO-14
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
LITIX™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
DC DC Controller
Topology
Switched Capacitor (Charge Pump)
Internal Switch(s)
No
Number of Outputs
2
Voltage - Supply (Min)
8.5V
Voltage - Supply (Max)
18V
Voltage - Output
-
Current - Output / Channel
120mA
Frequency
-
Dimming
PWM
Applications
Lighting
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Mounting Type
Surface Mount
Package / Case
14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
PG-TSDSO-14
Base Product Number
TLD22522
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
