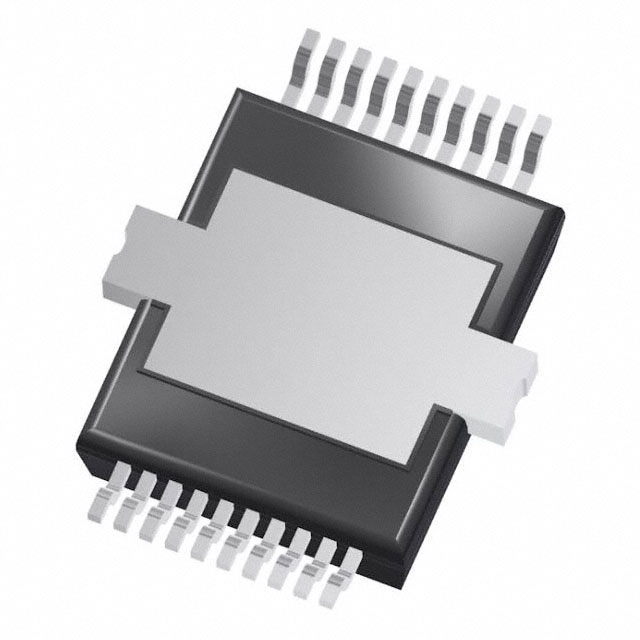

TLE9104SHXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
TLE9104SHXUMA1
Product Number:
TLE9104SHXUMA1
MFR Standard Lead Time:
26 Weeks
Package/Case:
20-BFSOP (0.295\, 7.50mm Width) Exposed Pad
Detailed Description:
IC POWERTRAIN SWITCH DSO20-88
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 3A PG-DSO-20-88
In Stock
3299
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
4
Ratio - Input:Output
1:1
Output Configuration
Low Side
Output Type
N-Channel
Interface
SPI
Voltage - Load
50V ~ 60V
Voltage - Supply (Vcc/Vdd)
3V ~ 5.5V
Current - Output (Max)
3A
Rds On (Typ)
150mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, Reverse Battery, Short Circuit
Operating Temperature
-40°C ~ 150°C
Mounting Type
Surface Mount
Supplier Device Package
PG-DSO-20-88
Package / Case
20-BFSOP (0.295", 7.50mm Width) Exposed Pad
Base Product Number
TLE9104
Documents & Media
HTML Datasheet
TLE9104SH Datasheet*
TLE9104SH Brief
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
