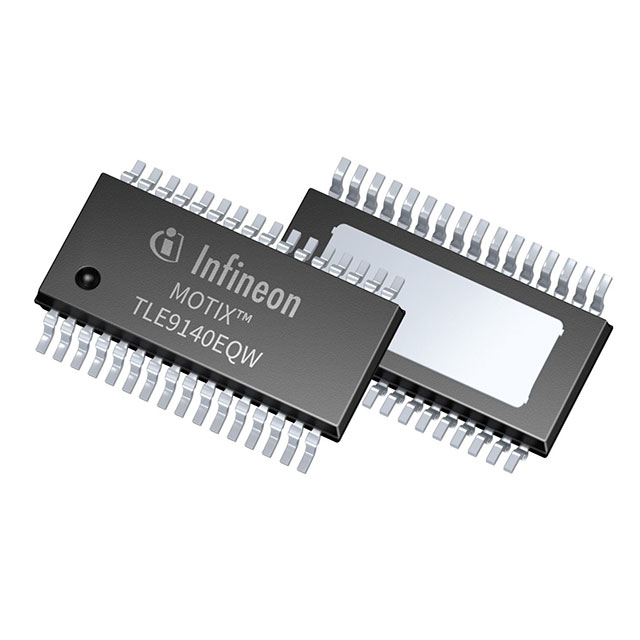

TLE9140EQWXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
TLE9140EQWXUMA1
Product Number:
TLE9140EQWXUMA1
MFR Standard Lead Time:
89 Weeks
Package/Case:
32-TSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
BLDC_DRIVER_IC
Datasheet:
Descnt:
Multiphase Motor Driver Power MOSFET SPI PG-TSDSO-32-1
In Stock
912
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
MOTIX™
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Multiphase
Motor Type - AC, DC
Brushless DC (BLDC)
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (3)
Interface
SPI
Technology
Power MOSFET
Step Resolution
-
Applications
-
Current - Output
-
Voltage - Supply
8V ~ 75V
Voltage - Load
-
Operating Temperature
-40°C ~ 175°C (TJ)
Grade
Automotive
Mounting Type
Surface Mount
Package / Case
32-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
PG-TSDSO-32-1
Base Product Number
TLE9140
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
