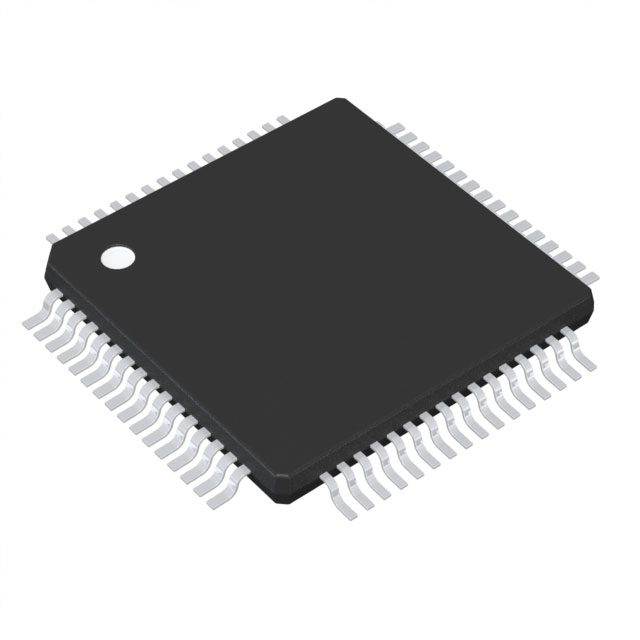

TLE9180D32QKXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
TLE9180D32QKXUMA1
Product Number:
TLE9180D32QKXUMA1
MFR Standard Lead Time:
39 Weeks
Package/Case:
64-LQFP Exposed Pad
Detailed Description:
DRIVER_IC
Datasheet:
Descnt:
Half-Bridge Gate Driver IC PG-LQFP-64-27
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Channel Type
3-Phase
Number of Drivers
6
Gate Type
N-Channel MOSFET
Voltage - Supply
6V ~ 60V
Logic Voltage - VIL, VIH
-
Current - Peak Output (Source, Sink)
2A
Input Type
-
Rise / Fall Time (Typ)
35ns, 35ns
Operating Temperature
-
Mounting Type
Surface Mount
Package / Case
64-LQFP Exposed Pad
Supplier Device Package
PG-LQFP-64-27
Base Product Number
TLE9180
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,900
