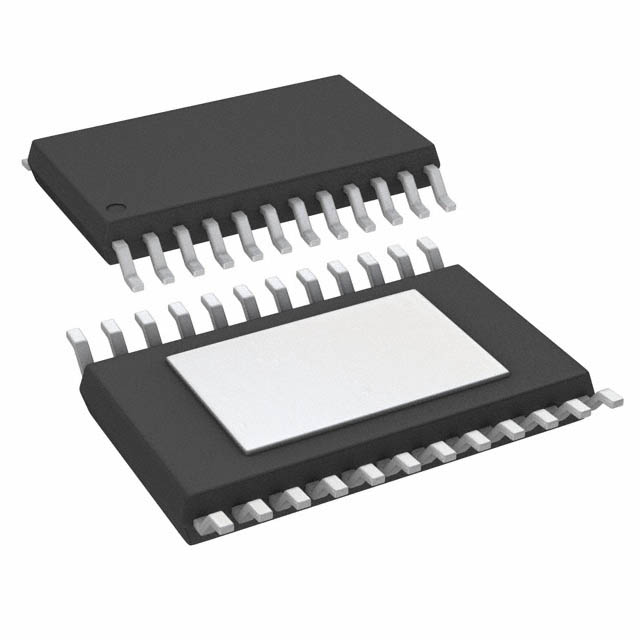

TLE94110ELXUMA1 Infineon Technologies
Favorite
Compare
Manufacturer:
Infineon Technologies
MFR Product Number:
TLE94110ELXUMA1
Product Number:
TLE94110ELXUMA1
MFR Standard Lead Time:
Package/Case:
24-LSSOP (0.154\, 3.90mm Width) Exposed Pad
Detailed Description:
IC HALF BRIDGE DRVR 500MA 24SSOP
Datasheet:
Descnt:
Half Bridge (10) Driver AC Motors, DC Motors, General Purpose Power MOSFET PG-SSOP-24-4
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Infineon Technologies
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Last Time Buy
Output Configuration
Half Bridge (10)
Applications
AC Motors, DC Motors, General Purpose
Interface
SPI
Load Type
Inductive
Technology
Power MOSFET
Rds On (Typ)
850mOhm LS, 850mOhm HS
Current - Output / Channel
500mA
Current - Peak Output
2A
Voltage - Supply
3V ~ 5.5V
Voltage - Load
5.5V ~ 20V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
-
Fault Protection
Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
PG-SSOP-24-4
Base Product Number
TLE94110
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
