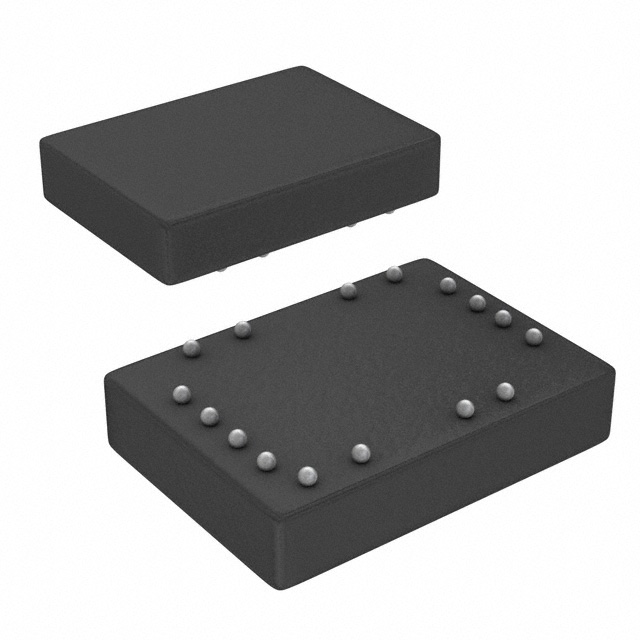

TLV5614IYER Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TLV5614IYER
Product Number:
TLV5614IYER
MFR Standard Lead Time:
Package/Case:
16-UFBGA, WLCSP
Detailed Description:
IC DAC 12BIT V-OUT 16WCSP
Datasheet:
Descnt:
12 Bit Digital to Analog Converter 4 16-WCSP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
DigiKey Programmable
Not Verified
Number of Bits
12
Number of D/A Converters
4
Settling Time
20µs
Output Type
Voltage - Buffered
Differential Output
No
Data Interface
SPI
Reference Type
External
Voltage - Supply, Analog
2.7V ~ 3.3V, 5V
Voltage - Supply, Digital
2.7V ~ 3.3V, 5V
INL/DNL (LSB)
±1.5, ±0.5
Architecture
String DAC
Operating Temperature
-40°C ~ 85°C
Package / Case
16-UFBGA, WLCSP
Supplier Device Package
16-WCSP
Mounting Type
Surface Mount
Base Product Number
TLV561
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
