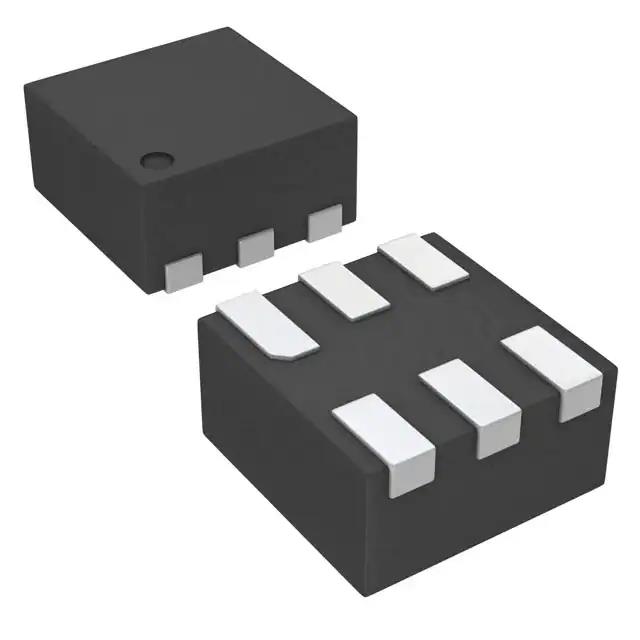

TLV70242PDSER Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TLV70242PDSER
Product Number:
TLV70242PDSER
MFR Standard Lead Time:
Package/Case:
6-WFDFN
Detailed Description:
TLV702P 300MA LOW-IQ LOW-DROPOUT
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-WSON (1.5x1.5)
In Stock
271265
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Bulk
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
4.2V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.38V 300mA
Current - Output
300mA
Current - Quiescent (Iq)
55 µA
Current - Supply (Max)
370 µA
PSRR
68dB (1kHz)
Control Features
Enable
Protection Features
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
6-WFDFN
Supplier Device Package
6-WSON (1.5x1.5)
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
Vendor Undefined
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
2156-TLV70242PDSER-296
Standard Package
1,562
