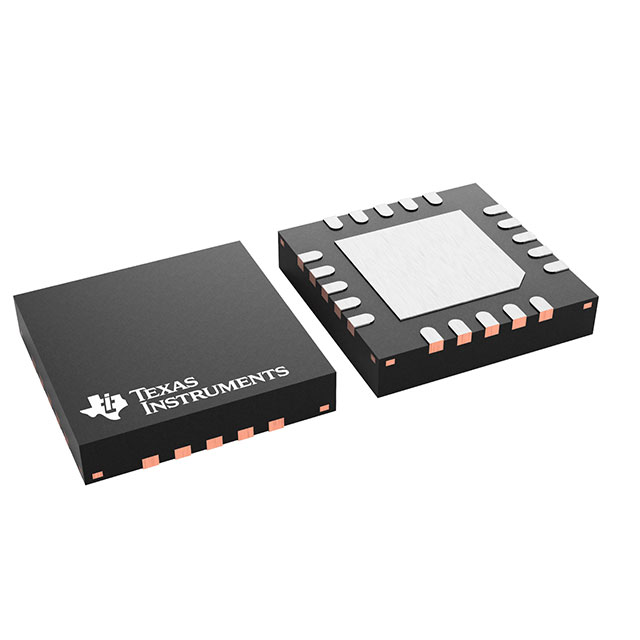

TMUX6234RRQR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TMUX6234RRQR
Product Number:
TMUX6234RRQR
MFR Standard Lead Time:
6 Weeks
Package/Case:
20-WFQFN Exposed Pad
Detailed Description:
IC SW SPST-NO/NCX4 6.2OHM 20WQFN
Datasheet:
Descnt:
4 Circuit IC Switch 2:1 6.2Ohm 20-WQFN (4x4)
In Stock
5488
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
4
On-State Resistance (Max)
6.2Ohm
Channel-to-Channel Matching (ΔRon)
200mOhm
Voltage - Supply, Single (V+)
4.5V ~ 36V
Voltage - Supply, Dual (V±)
±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)
95ns, 85ns
-3db Bandwidth
95MHz
Charge Injection
3pC
Channel Capacitance (CS(off), CD(off))
17pF, 28pF
Current - Leakage (IS(off)) (Max)
400pA
Crosstalk
-105dB 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
20-WFQFN Exposed Pad
Supplier Device Package
20-WQFN (4x4)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
Not applicable
Moisture Sensitivity Level (MSL)
2 (1 Year)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
250
