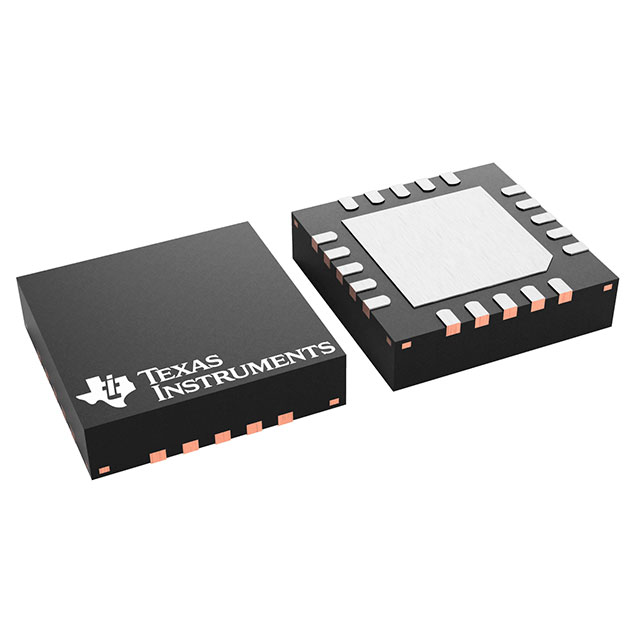

TMUX7348FRTJR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TMUX7348FRTJR
Product Number:
TMUX7348FRTJR
MFR Standard Lead Time:
6 Weeks
Package/Case:
20-WFQFN Exposed Pad
Detailed Description:
IC SWITCH SP8T X 1 250OHM 20QFN
Datasheet:
Descnt:
1 Circuit IC Switch 8:1 250Ohm 20-QFN (4x4)
In Stock
8963
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SP8T
Multiplexer/Demultiplexer Circuit
8:1
Number of Circuits
1
On-State Resistance (Max)
250Ohm
Channel-to-Channel Matching (ΔRon)
2.5Ohm
Voltage - Supply, Single (V+)
8V ~ 44V
Voltage - Supply, Dual (V±)
±5V ~ 22V
Switch Time (Ton, Toff) (Max)
300ns, 400ns
-3db Bandwidth
150MHz
Charge Injection
-17pC
Channel Capacitance (CS(off), CD(off))
3.5pF, 28pF
Current - Leakage (IS(off)) (Max)
1nA
Crosstalk
-95dB 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
20-WFQFN Exposed Pad
Supplier Device Package
20-QFN (4x4)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
