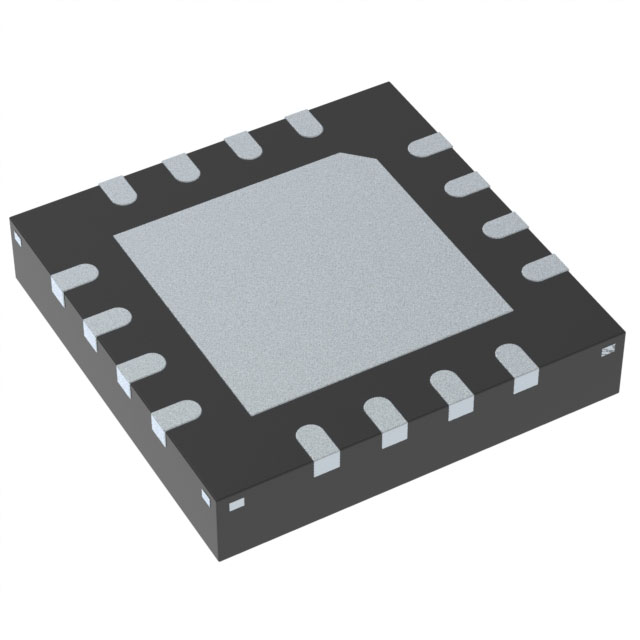

TMUX7411FRRPR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TMUX7411FRRPR
Product Number:
TMUX7411FRRPR
MFR Standard Lead Time:
6 Weeks
Package/Case:
16-WQFN Exposed Pad
Detailed Description:
IC SWITCH SPST-NOX4 11OHM 16WQFN
Datasheet:
Descnt:
4 Circuit IC Switch 1:1 11Ohm 16-WQFN (4x4)
In Stock
2841
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
SPST - NO
Multiplexer/Demultiplexer Circuit
1:1
Number of Circuits
4
On-State Resistance (Max)
11Ohm
Channel-to-Channel Matching (ΔRon)
600mOhm (Typ)
Voltage - Supply, Single (V+)
8V ~ 44V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
750ns, 210ns
-3db Bandwidth
650MHz
Charge Injection
-330pC
Channel Capacitance (CS(off), CD(off))
12pF, 14pF
Current - Leakage (IS(off)) (Max)
700pA
Crosstalk
-110dB 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
16-WQFN Exposed Pad
Supplier Device Package
16-WQFN (4x4)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
