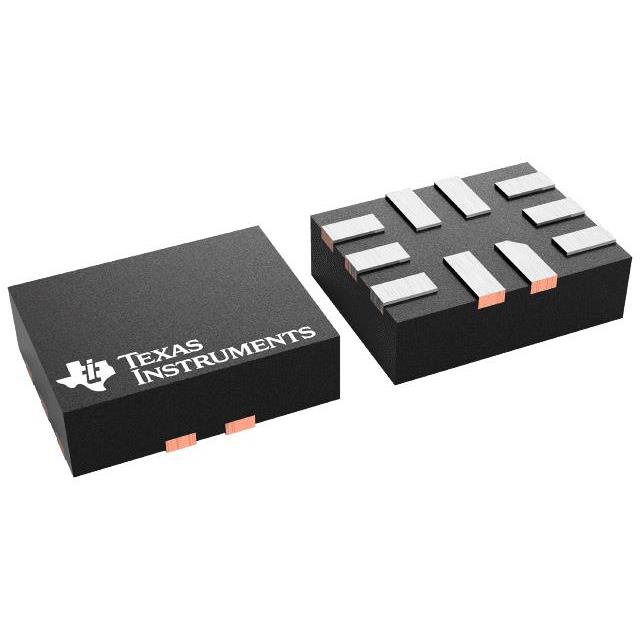

TMUXHS221NKGT Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TMUXHS221NKGT
Product Number:
TMUXHS221NKGT
MFR Standard Lead Time:
6 Weeks
Package/Case:
10-UFQFN
Detailed Description:
IC SWITCH DPDT X 1 8OHM 10UQFN
Datasheet:
Descnt:
1 Circuit IC Switch 2:1 8Ohm 10-UQFN (1.4x1.8)
In Stock
4857
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Circuit
DPDT
Multiplexer/Demultiplexer Circuit
2:1
Number of Circuits
1
On-State Resistance (Max)
8Ohm
Channel-to-Channel Matching (ΔRon)
500mOhm (Max)
Voltage - Supply, Single (V+)
3V ~ 3.6V
Voltage - Supply, Dual (V±)
-
Switch Time (Ton, Toff) (Max)
16µs, 500ns
-3db Bandwidth
3.3GHz
Charge Injection
-
Channel Capacitance (CS(off), CD(off))
-
Current - Leakage (IS(off)) (Max)
2µA
Crosstalk
-32dB 240MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
10-UFQFN
Supplier Device Package
10-UQFN (1.4x1.8)
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
250
