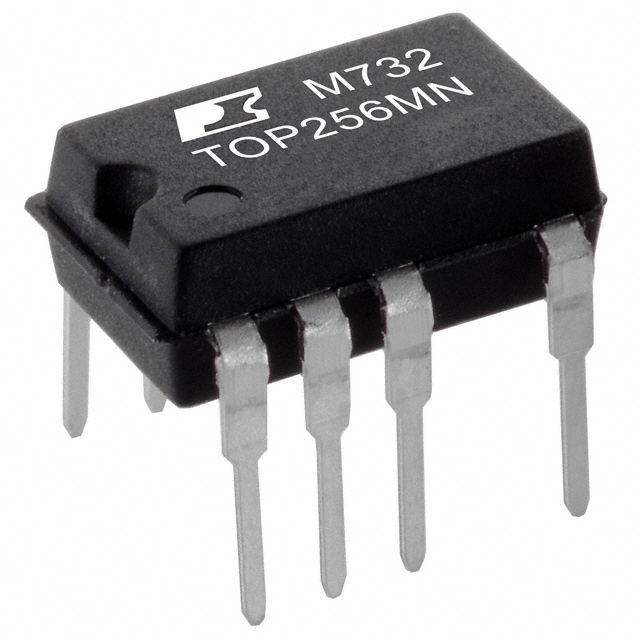

TOP256MN Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
TOP256MN
Product Number:
TOP256MN
MFR Standard Lead Time:
Package/Case:
10-SDIP (0.300\, 7.62mm), 9 Leads
Detailed Description:
IC OFFLINE SW FLYBACK 10CSDIP
Datasheet:
Descnt:
Converter Offline Flyback Topology 66kHz SDIP-10C
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
TOPSwitch®-HX
Packaging
Tube
Part Status
Obsolete
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
700V
Topology
Flyback
Voltage - Supply (Vcc/Vdd)
-
Duty Cycle
78%
Frequency - Switching
66kHz
Power (Watts)
34 W
Fault Protection
Current Limiting, Over Temperature, Over Voltage
Control Features
-
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
10-SDIP (0.300", 7.62mm), 9 Leads
Supplier Device Package
SDIP-10C
Mounting Type
Through Hole
Base Product Number
TOP256
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
596-1183-5
Standard Package
50
