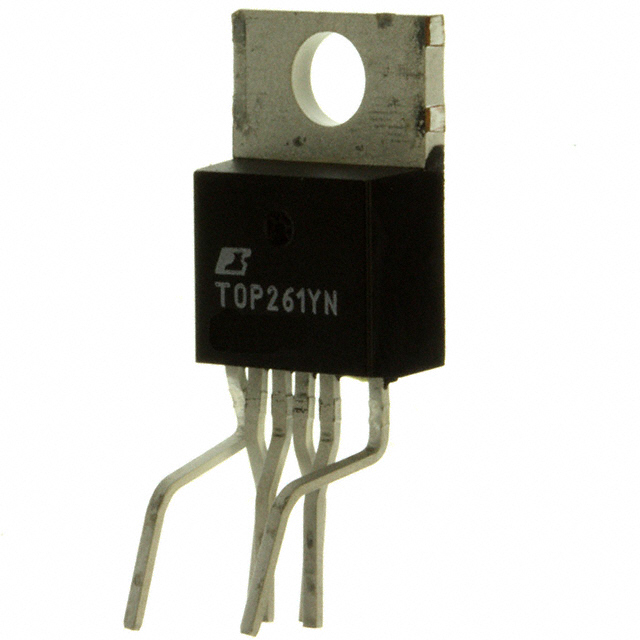

TOP261YN Power Integrations
Favorite
Compare
Manufacturer:
Power Integrations
MFR Product Number:
TOP261YN
Product Number:
TOP261YN
MFR Standard Lead Time:
8 Weeks
Package/Case:
TO-220-7 Formed Leads, 6 Leads
Detailed Description:
IC OFFLINE SW FLYBACK TO220-7C
Datasheet:
Descnt:
Converter Offline Flyback Topology 66kHz TO-220-7C
In Stock
2615
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Power Integrations
Series
TOPSwitch®-HX
Packaging
Tube
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
700V
Topology
Flyback
Voltage - Supply (Vcc/Vdd)
-
Duty Cycle
78%
Frequency - Switching
66kHz
Power (Watts)
333 W
Fault Protection
Current Limiting, Over Temperature, Over Voltage
Control Features
-
Operating Temperature
-40°C ~ 150°C (TJ)
Package / Case
TO-220-7 Formed Leads, 6 Leads
Supplier Device Package
TO-220-7C
Mounting Type
Through Hole
Base Product Number
TOP261
-
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
596-1216-5
Standard Package
50
