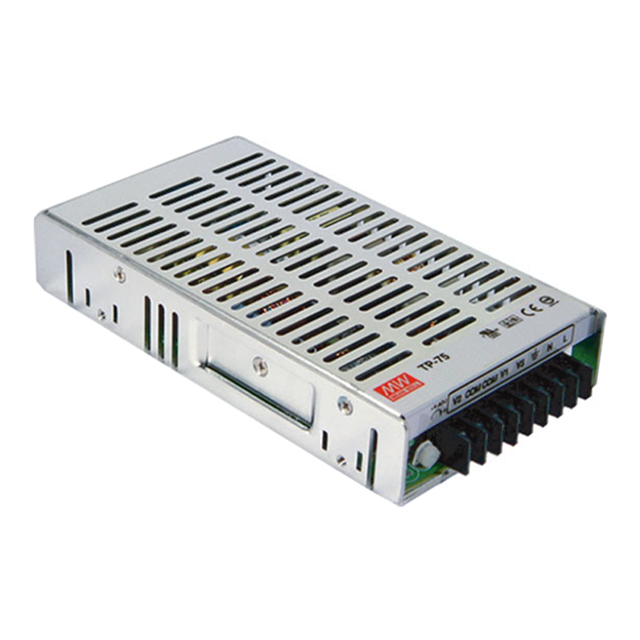

TP-7503 MEAN WELL USA Inc.
Favorite
Compare
Manufacturer:
MEAN WELL USA Inc.
MFR Product Number:
TP-7503
Product Number:
TP-7503
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AC/DC CONVERTER 5V 3.3V 12V 75W
Datasheet:
Descnt:
Enclosed AC DC Converters 3 Output 5V 3.3V 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
MEAN WELL USA Inc.
Series
TP-75 (75W)
Packaging
Box
Part Status
Obsolete
Type
Enclosed
Number of Outputs
3
Voltage - Input
90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1
5V
Voltage - Output 2
3.3V
Voltage - Output 3
12V
Voltage - Output 4
-
Voltage - Output 6
-
Current - Output 1
9 A
Current - Output 2
8 A
Current - Output 3
300 mA
Power (Watts)
75W
Applications
ITE (Commercial)
Voltage - Isolation
3 kV
Efficiency
70%
Operating Temperature
-10°C ~ 60°C (With Derating)
Features
Adjustable Output, PFC, Universal Input
Mounting Type
Chassis Mount
Size / Dimension
7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm)
Approval Agency
CB, CE, cURus, TUV
Minimum Load Required
Yes
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.40.9520
-
Additional Resources
Standard Package
1
-
