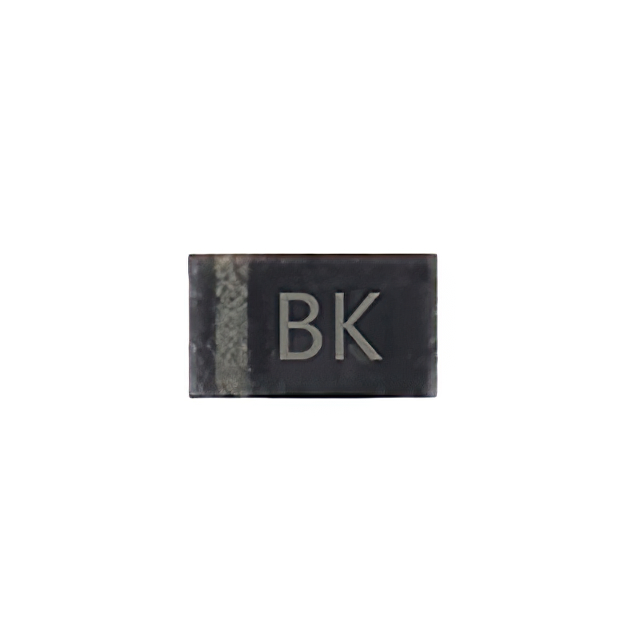

TPD1E05U06DPYR UMW
Favorite
Compare
Manufacturer:
UMW
MFR Product Number:
TPD1E05U06DPYR
Product Number:
TPD1E05U06DPYR
MFR Standard Lead Time:
2 Weeks
Package/Case:
0402 (1006 Metric)
Detailed Description:
X1SON ESD PROTECTION DEVICES ROH
Datasheet:
Descnt:
15V Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount 2-X1SON (1x0.6)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
UMW
Series
UMW
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Unidirectional Channels
1
Voltage - Reverse Standoff (Typ)
5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
15V
Current - Peak Pulse (10/1000µs)
3.5A (8/20µs)
Power - Peak Pulse
45W
Power Line Protection
No
Applications
General Purpose
Capacitance Frequency
0.7pF 1MHz
Operating Temperature
-55°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
0402 (1006 Metric)
Supplier Device Package
2-X1SON (1x0.6)
Documents & Media
Environmental Information
UTD REACH SGS 223 Jan 2022 Package
UTD RoHS3 SGS Package
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.10.0080
-
Additional Resources
Other Names
Standard Package
10,000
