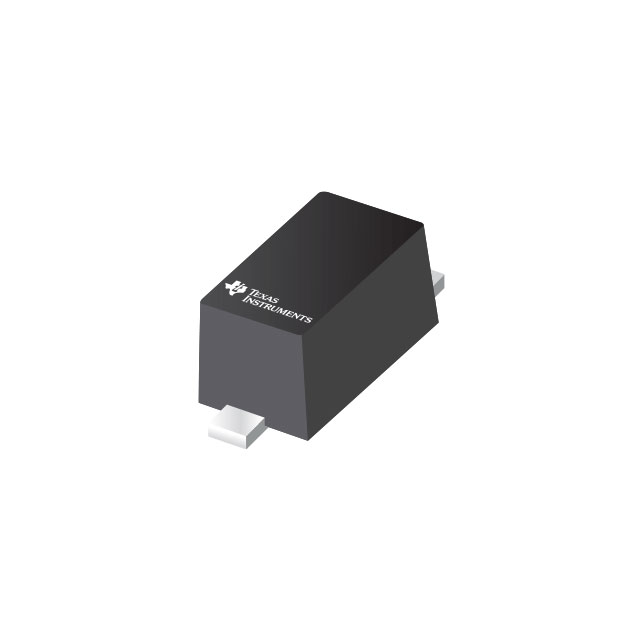

TPD1E10B06DYAR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPD1E10B06DYAR
Product Number:
TPD1E10B06DYAR
MFR Standard Lead Time:
12 Weeks
Package/Case:
SC-79, SOD-523
Detailed Description:
12-PF, 5.5V, 30-KV ESD PROTECTIO
Datasheet:
Descnt:
14V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOT-5X3
In Stock
211
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
14V
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
Power - Peak Pulse
90W
Power Line Protection
No
Applications
USB
Capacitance Frequency
12pF 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
SC-79, SOD-523
Supplier Device Package
SOT-5X3
Base Product Number
TPD1E10
-
Documents & Media
Environmental & Export Classifications
RoHS Status
Not applicable
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8541.10.0080
Additional Resources
Other Names
Standard Package
3,000
