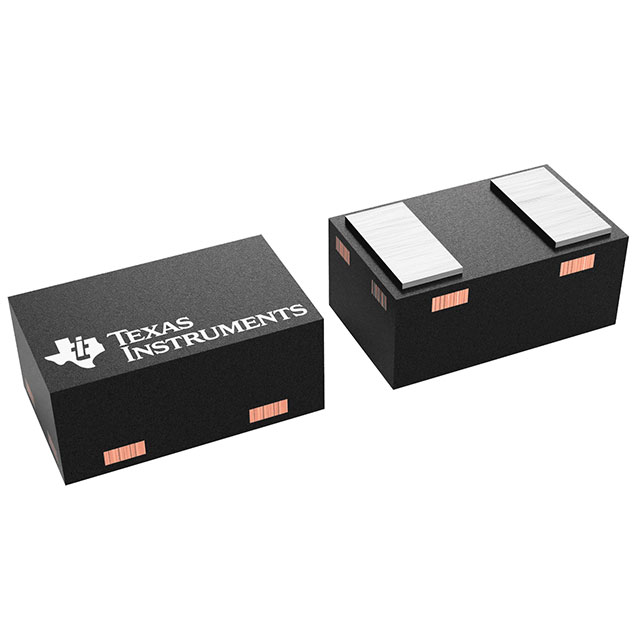

TPD1E10B06DYARQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPD1E10B06DYARQ1
Product Number:
TPD1E10B06DYARQ1
MFR Standard Lead Time:
6 Weeks
Package/Case:
SC-79, SOD-523
Detailed Description:
AUTOMOTIVE 12-PF, 5.5V 30-KV ESD
Datasheet:
Descnt:
14V (Typ) Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOT-5X3
In Stock
3544
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Zener
Bidirectional Channels
1
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) Ipp
14V (Typ)
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
Power - Peak Pulse
90W
Power Line Protection
No
Applications
-
Capacitance Frequency
12pF 1MHz
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q101
Mounting Type
Surface Mount
Package / Case
SC-79, SOD-523
Supplier Device Package
SOT-5X3
Base Product Number
TPD1E10B06
-
Documents & Media
Environmental & Export Classifications
RoHS Status
Not applicable
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8541.10.0080
Additional Resources
Other Names
Standard Package
3,000
