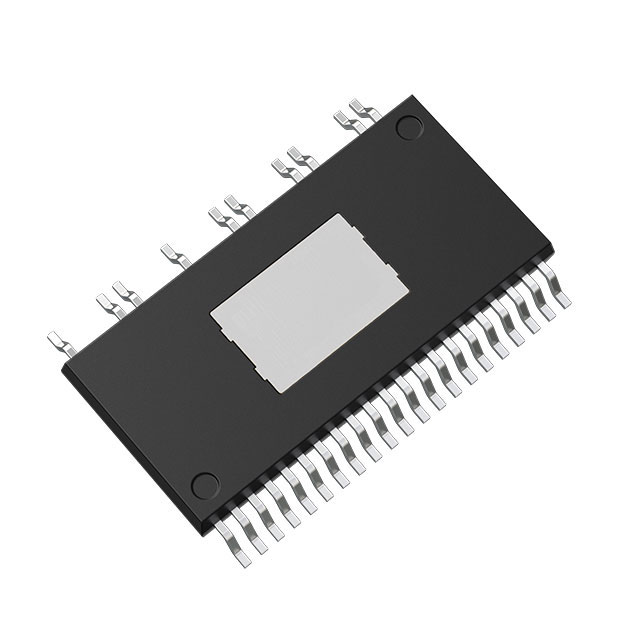

TPD4162F,LF Toshiba Semiconductor and Storage
Favorite
Compare
Manufacturer:
Toshiba Semiconductor and Storage
MFR Product Number:
TPD4162F,LF
Product Number:
TPD4162F-LF
MFR Standard Lead Time:
32 Weeks
Package/Case:
62-SOP (0.331\, 8.40mm Width) Exposed Pad, 31 Leads
Detailed Description:
PB-F IPD IC HSSOP31 VBB(V)=600V
Datasheet:
Descnt:
Multiphase Motor Driver IGBT PWM P-HSSOP31-0918-0.80-002
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Toshiba Semiconductor and Storage
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
Multiphase
Motor Type - AC, DC
Brushless DC (BLDC)
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
High Side
Interface
PWM
Technology
IGBT
Step Resolution
-
Applications
General Purpose
Current - Output
700mA
Voltage - Supply
13.5V ~ 17.5V
Voltage - Load
50V ~ 450V
Operating Temperature
-40°C ~ 135°C
Mounting Type
Surface Mount
Package / Case
62-SOP (0.331", 8.40mm Width) Exposed Pad, 31 Leads
Supplier Device Package
P-HSSOP31-0918-0.80-002
Base Product Number
TPD4162
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,000
