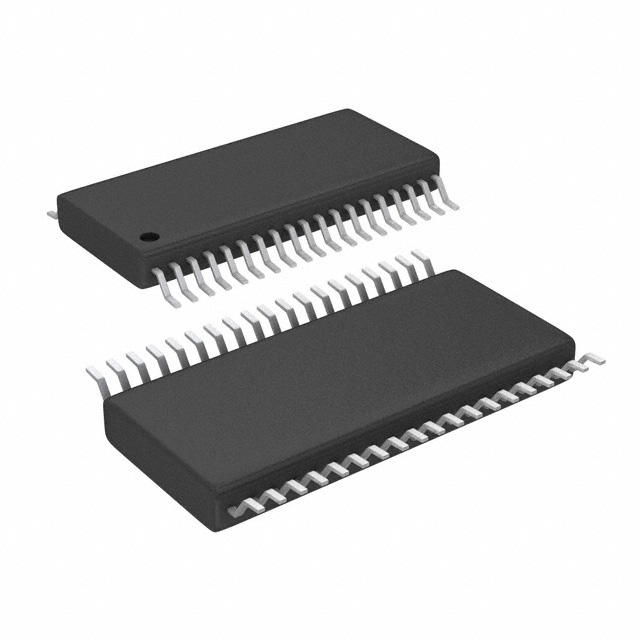

TPIC2040DBTRG4 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPIC2040DBTRG4
Product Number:
TPIC2040DBTRG4
MFR Standard Lead Time:
Package/Case:
38-TFSOP (0.173\, 4.40mm Width)
Detailed Description:
IC MOTOR DRIVER 3V-3.6V 38TSSOP
Datasheet:
Descnt:
Motor Driver Power MOSFET SPI 38-TSSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Discontinued at Digi-Key
Motor Type - Stepper
-
Motor Type - AC, DC
Brushless DC (BLDC), Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (15)
Interface
SPI
Technology
Power MOSFET
Step Resolution
-
Applications
Media Player
Current - Output
1A
Voltage - Supply
3V ~ 3.6V
Voltage - Load
4.5V ~ 5.5V
Operating Temperature
-20°C ~ 75°C (TA)
Mounting Type
Surface Mount
Package / Case
38-TFSOP (0.173", 4.40mm Width)
Supplier Device Package
38-TSSOP
Base Product Number
TPIC2040
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
