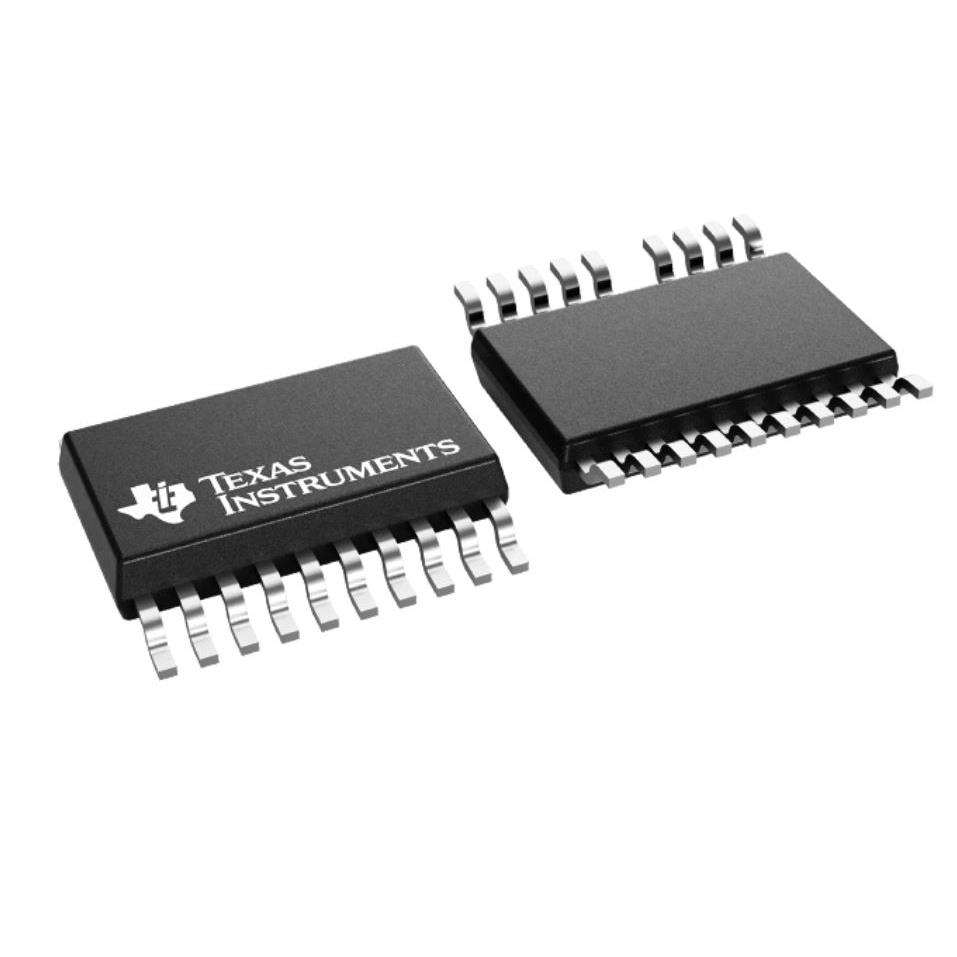

TPS12112AQDGXRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS12112AQDGXRQ1
Product Number:
TPS12112AQDGXRQ1
MFR Standard Lead Time:
12 Weeks
Package/Case:
20-TFSOP (0.118\, 3.00mm Width), 19 Leads
Detailed Description:
IC
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 3.7A 19-VSSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
3.5V ~ 40V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
3.7A
Rds On (Typ)
0.47mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection
Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Battery, UVLO
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
19-VSSOP
Package / Case
20-TFSOP (0.118", 3.00mm Width), 19 Leads
-
Documents & Media
Additional Resources
Other Names
296-TPS12112AQDGXRQ1TR
Standard Package
5,000
