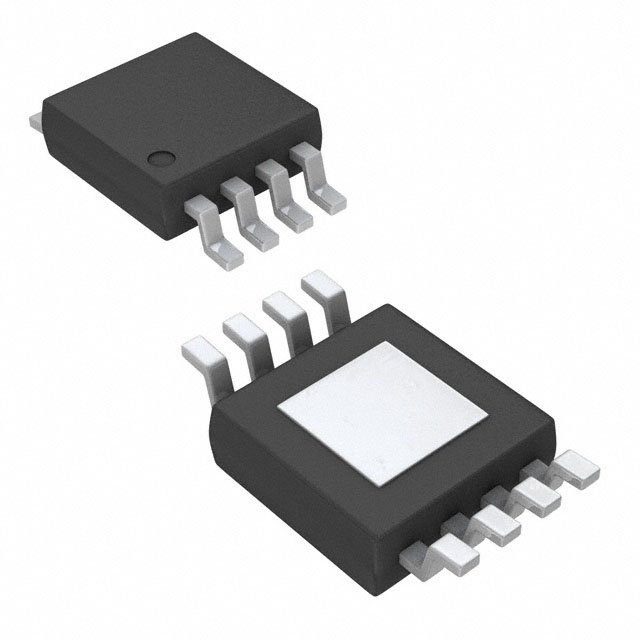

TPS1H200AQDGNRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS1H200AQDGNRQ1
Product Number:
TPS1H200AQDGNRQ1
MFR Standard Lead Time:
12 Weeks
Package/Case:
8-TSSOP, 8-MSOP (0.118\, 3.00mm Width) Exposed Pad
Detailed Description:
IC PWR DRIVER N-CHAN 1:1 8MSOP
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 2.5A 8-HVSSOP
In Stock
25329
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
Relay, Solenoid Driver
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
-
Voltage - Supply (Vcc/Vdd)
4V ~ 40V
Current - Output (Max)
2.5A
Rds On (Typ)
200mOhm
Input Type
Non-Inverting
Features
Auto Restart
Fault Protection
Current Limiting (Adjustable), Open Load Detect, Over Load, Over Temperature, Reverse Current, Short Circuit, UVLO
Operating Temperature
-40°C ~ 125°C
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Supplier Device Package
8-HVSSOP
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Base Product Number
TPS1H200
Documents & Media
Datasheets
PCN Design/Specification
TPS1H200 17/Mar/2022
TPS1H200A-Q1 14/Jan/2020
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
