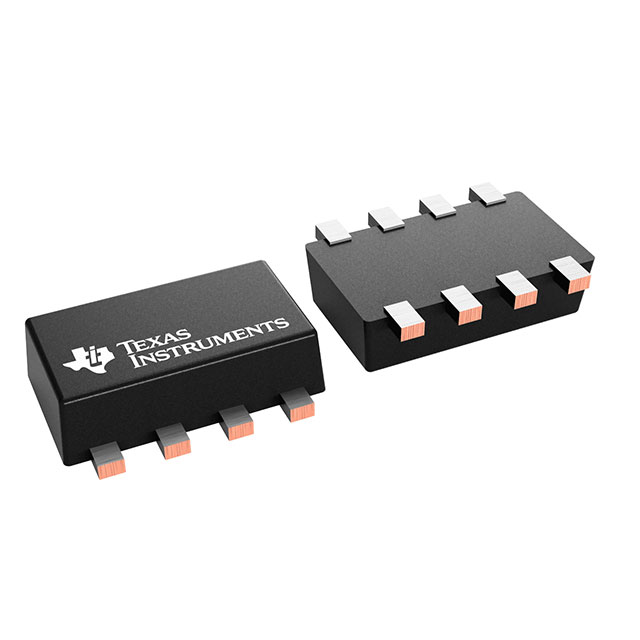

TPS2117DRLR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS2117DRLR
Product Number:
TPS2117DRLR
MFR Standard Lead Time:
12 Weeks
Package/Case:
SOT-583
Detailed Description:
1.6-V TO 5.5-V, 20-M, 4-A LOW IQ
Datasheet:
Descnt:
Power Switch/Driver 2:1 N-Channel 4A SOT-583
In Stock
4209
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
2:1
Output Configuration
High Side
Output Type
N-Channel
Interface
Logic
Voltage - Load
1.6V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
1.6V ~ 5.5V
Current - Output (Max)
4A
Rds On (Typ)
20mOhm
Input Type
Differential
Features
-
Fault Protection
Current Limiting (Fixed), Reverse Current
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
SOT-583
Package / Case
SOT-583
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
