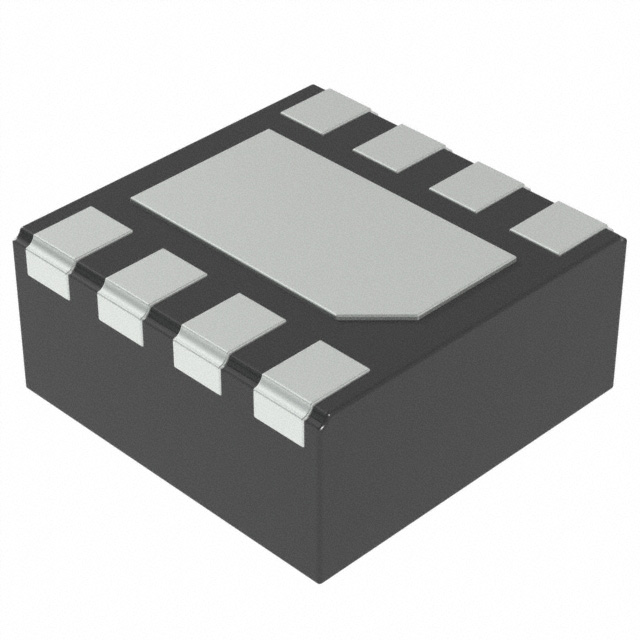

TPS22965NQWDSGRQ1 Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS22965NQWDSGRQ1
Product Number:
TPS22965NQWDSGRQ1
MFR Standard Lead Time:
6 Weeks
Package/Case:
8-WFDFN Exposed Pad
Detailed Description:
IC PWR SWITCH N-CHAN 1:1 8WSON
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 4A 8-WSON (2x2)
In Stock
19070
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
0.8V ~ 5.5V
Current - Output (Max)
4A
Rds On (Typ)
16mOhm
Input Type
Non-Inverting
Features
Slew Rate Controlled
Fault Protection
-
Operating Temperature
-40°C ~ 125°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount, Wettable Flank
Supplier Device Package
8-WSON (2x2)
Package / Case
8-WFDFN Exposed Pad
Base Product Number
TPS22965
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
