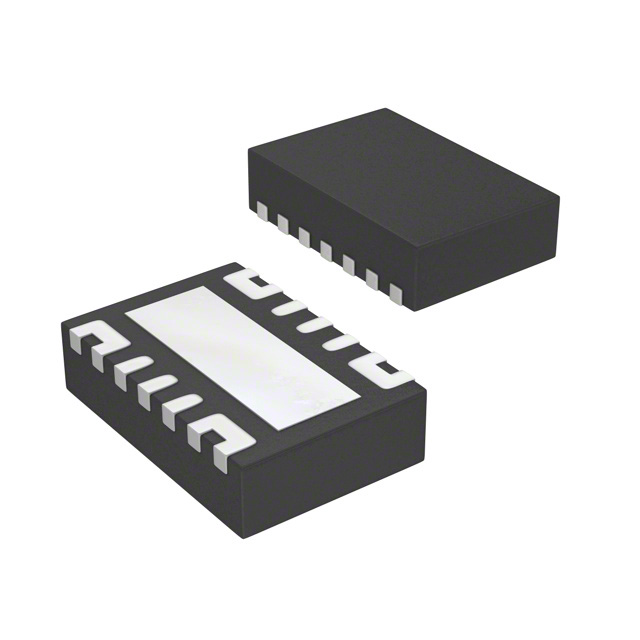

TPS22976NDPUR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS22976NDPUR
Product Number:
TPS22976NDPUR
MFR Standard Lead Time:
6 Weeks
Package/Case:
14-PowerWFDFN
Detailed Description:
IC PWR SWITCH N-CHAN 1:1 14WSON
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 6A 14-WSON (3x2)
In Stock
7946
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
0.6V ~ 5.7V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
6A
Rds On (Typ)
14mOhm
Input Type
-
Features
-
Fault Protection
Over Temperature
Operating Temperature
-40°C ~ 105°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
14-WSON (3x2)
Package / Case
14-PowerWFDFN
Base Product Number
TPS22976
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
