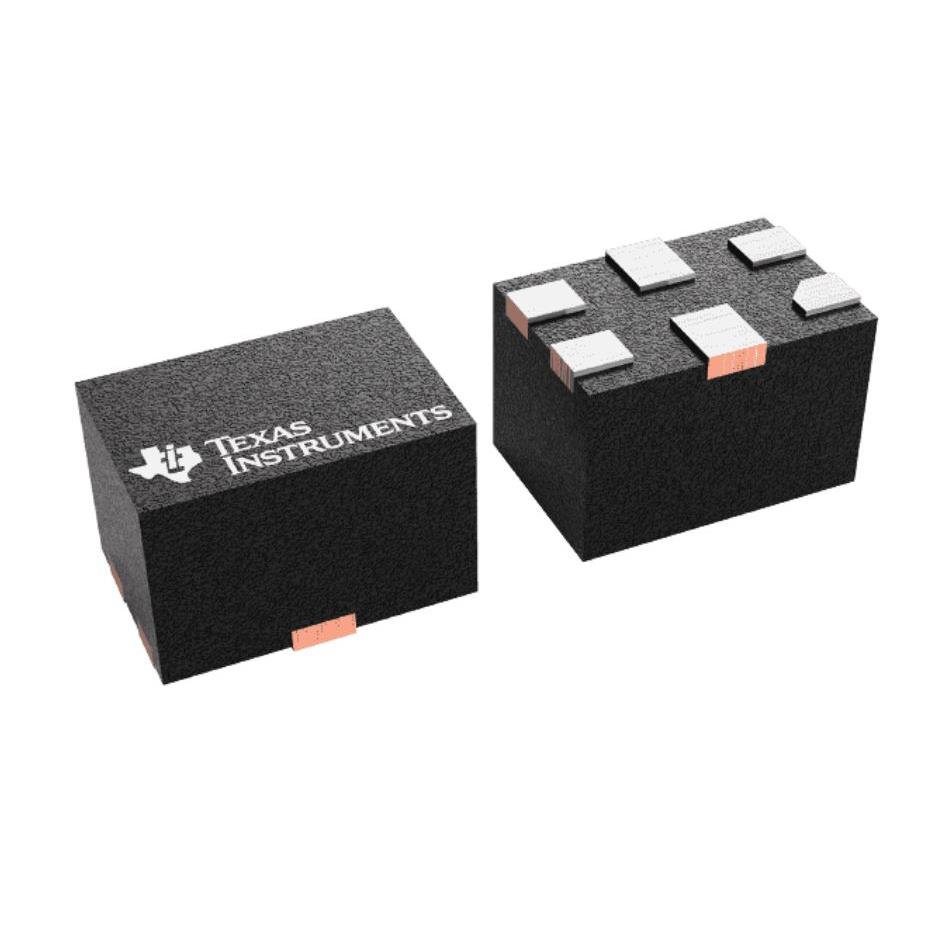

TPS22995RZFR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
TPS22995RZFR
Product Number:
TPS22995RZFR
MFR Standard Lead Time:
6 Weeks
Package/Case:
6-WFQFN
Detailed Description:
5.5-V, 3.5-A, 20-M ON-RESISTANCE
Datasheet:
Descnt:
Power Switch/Driver 1:1 N-Channel 3.8A 6-WQFN-HR (1.25x0.85)
In Stock
140262
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
0.4V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
1.5V ~ 5.5V
Current - Output (Max)
3.8A
Rds On (Typ)
18mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled
Fault Protection
Over Temperature
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
6-WQFN-HR (1.25x0.85)
Package / Case
6-WFQFN
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
